59075-1-T-01-A
ObsoleteLITTELFUSE
SENSOR REED SW SPST-NO W LEADS
59075-1-T-01-A
ObsoleteLITTELFUSE
SENSOR REED SW SPST-NO W LEADS
Description
General part information
59075-1-T-01-A

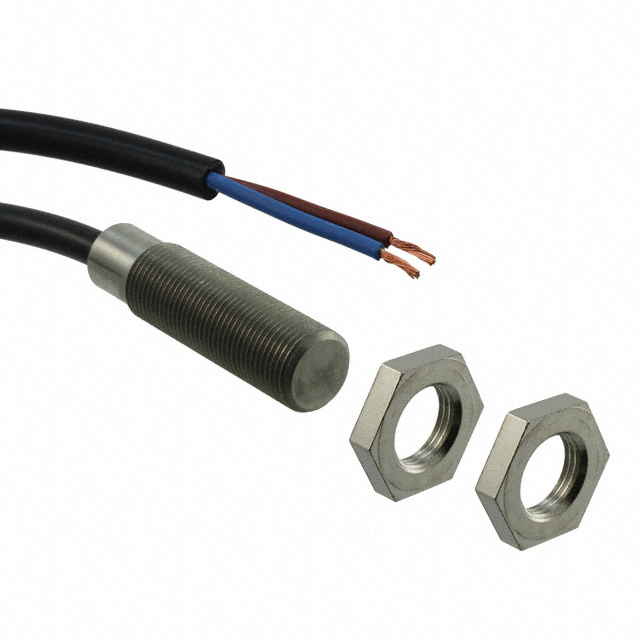

Magnetic Reed Switch Magnet SPST-NO Wire Leads Cylinder, Threaded
Technical Specifications
Parameters and characteristics for this part
| Specification | 59075-1-T-01-A |
|---|---|
| Actuator Material | Magnet |
| Must Operate (Length) | 21 mm |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | SPST-NO |
| Package / Case | Threaded, Cylinder |
| Termination Style | Wire Leads |
| Type | Reed Switch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
