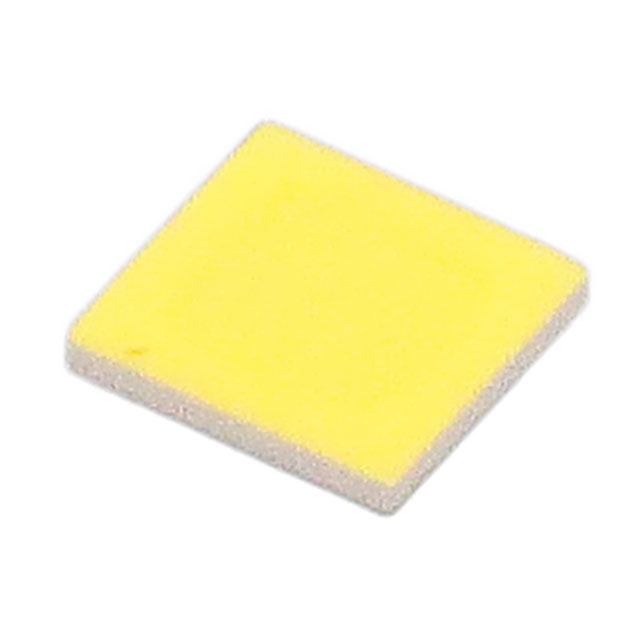

SCP7QTF1HEL1QKP34E

Active

Samsung Semiconductor, Inc.

LED LH181B COOL WHITE 5700K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH181B COOL WHITE 5700K SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED LH181B COOL WHITE 5700K SMD

Part	CCT (K)	Color	Current - Test	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	CRI (Color Rendering Index)	Viewing Angle	Package / Case	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Samsung Semiconductor, Inc. SCP7QTF1HEL1QKP34E	5700 K	Cool, White	350 mA	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	1.4 A	70	120 °	2-SMD, No Lead	175 lm	160 lm	190 lm	SMD	2.9 V	0.019 in	0.48 mm
Samsung Semiconductor, Inc. SCP7QTF1HEL1QUP34E	5700 K	Cool, White	350 mA	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	1.4 A	70	120 °	2-SMD, No Lead	175 lm	160 lm	190 lm	SMD	2.9 V	0.019 in	0.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH181B White, Cool 5700K 2.9V 350mA 120° 2-SMD, No Lead

Technical documentation and resources

No documents available
