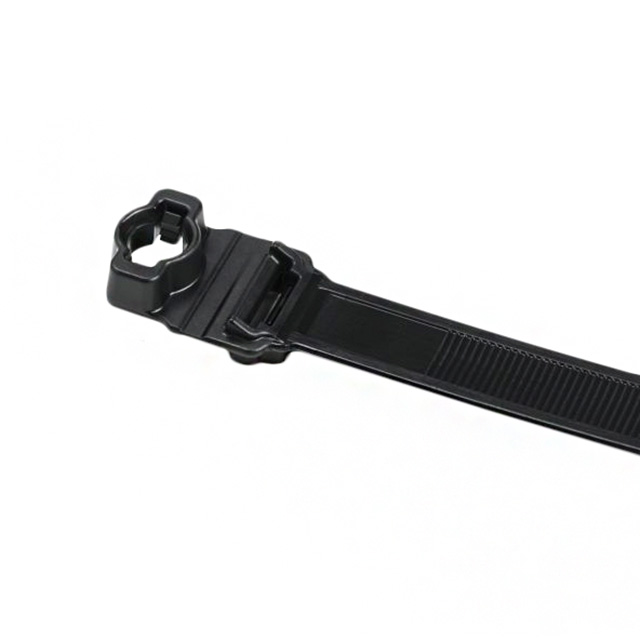

Specification	157-00282

Bundle Diameter	3.25 in
Color	Black
Features	UV Resistant, Impact Resistant, Heat Stabilized
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Stud Mount
Tensile Strength	120 lbs
Width	12.7 mm
Wire/Cable Tie Type	Locking, Standard

157-00 Series

Cable Tie Mounts 1-Pc Cable Tie/Fir Tree Mount with Disc, 7.1"L, 0.24 - 0.48" mounting hole, PA66, natural,

...

Part	Mounting Type	Length - Approximate	Bundle Diameter	Tensile Strength	Color	Features	Wire/Cable Tie Type	Material	Length - Actual	Width
HELLERMANNTYTON 156-02258	Swivel Clip Mount	1 in	0.86 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.089 ft
HELLERMANNTYTON 156-02231	Edge Clip	8 in	1.97 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.663 ft	0.181 in
HELLERMANNTYTON 156-01722	Swivel Clip Mount	0.75 in	0.39 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.057 ft
HELLERMANNTYTON 156-01790	Swivel Clip Mount	1 in	0.86 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.089 ft
HELLERMANNTYTON 156-02265	Fir Tree Push Mount	8 in	3.15 in	50 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.663 ft	0.694 in
HELLERMANNTYTON 156-02241	Swivel Clip Mount	0.5 in	0.31 in	51 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.043 ft	0.394 in
HELLERMANNTYTON 148-00095	Wire Clamp Mount	6 in	1.38 in	50 lbs	Black	Heat Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.492 ft	0.181 in
HELLERMANNTYTON 156-02248	Swivel Clip Mount	1.5 in	1.14 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.134 ft
HELLERMANNTYTON 156-01785	Swivel Clip Mount	0.5 in	0.35 in	50 lbs	Black	Heat Stabilized Impact Modified UV Stabilized	Locking Standard	6 Nylon 6 Polyamide (PA66)	0.043 ft
HELLERMANNTYTON T50RTM250HSC2	Fir Tree Push Mount	8 in	1.97 in	50 lbs	Black		Locking Standard	6 Nylon 6 Polyamide (PA66)	0.667 ft	0.18 in
