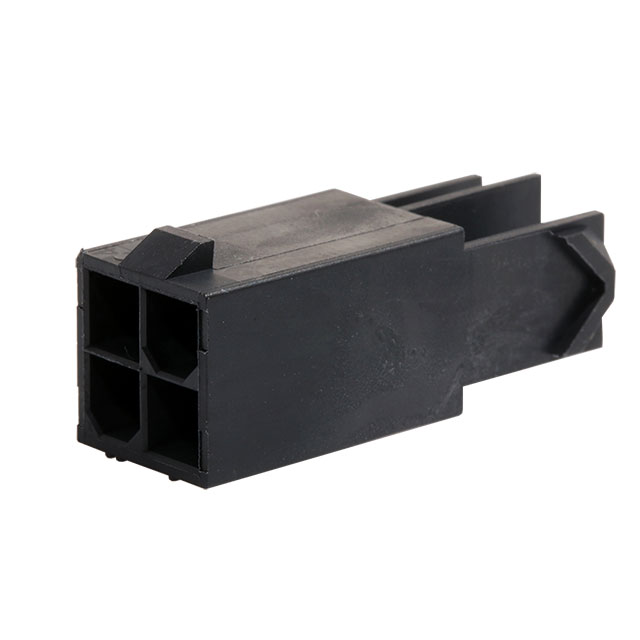

Specification	1727620004

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Pitch	0.165 in
Row Spacing	0.165 in

172762 Series

Headers & Wire Housings MINIFIT TPA2 DR PLUG HSG V-2 GW 10CKT

Part	Contact Type	Features	Color	Insulation Material	Fastening Type	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Pitch	Mounting Type	Connector Type	Row Spacing	Number of Positions	Note
Molex 1727621012	Male Pin	Glow Wire Compliant	Black	Nylon Polyamide (PA)	Locking Ramp	Crimp	-40 °C	105 °C	2	0.165 in	Free Hanging (In-Line)	Plug	0.185 in	12
Molex 1727621014	Male Pin	Glow Wire Compliant	Black	Nylon Polyamide (PA)	Locking Ramp	Crimp	-40 °C	105 °C	2	0.165 in	Free Hanging (In-Line)	Plug	0.185 in	14
Molex 1727620006	Male Pin		Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	6	Contacts Not Included
Molex 1727620010	Male Pin		Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	10	Contacts Not Included
Molex 1727620008	Male Pin		Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	8	Contacts Not Included
Molex 1727620106	Male Pin	Glow Wire Compliant	Black	Nylon Polyamide (PA)	Locking Ramp	Crimp	-40 °C	105 °C	2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	6	Contacts Not Included
Molex 1727620102	Male Pin	Glow Wire Compliant	Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2		Free Hanging (In-Line)	Plug	0.165 in	2
Molex 1727620002	Male Pin		Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2		Free Hanging (In-Line)	Plug	0.165 in	2	Contacts Not Included
Molex 1727620012	Male Pin		Black	Nylon Polyamide (PA)	Locking Ramp	Crimp			2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	12	Contacts Not Included
Molex 1727620108	Male Pin	Glow Wire Compliant	Black	Nylon Polyamide (PA)	Locking Ramp	Crimp	-40 °C	105 °C	2	0.165 in	Free Hanging (In-Line)	Plug	0.165 in	8	Contacts Not Included
