83654 002500

Active

Belden Inc.

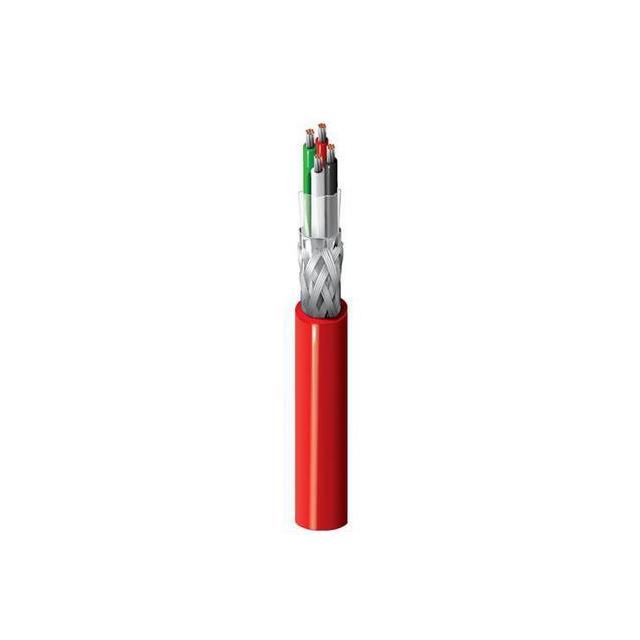

CABLE 4COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83654 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Voltage	Ratings	Usage	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Number of Conductors	Cable Type
Belden Inc. 83654 002500	18 AWG	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	500 '	152.4 m	200 °C	-70 °C	0.356 mm	0.014 in	Aluminum Copper Tinned	300 V	UL Style CMP	Audio Control Instrumentation	85 % 100 %	0.195 in	4.95 mm	Red	Fluorinated Ethylene-Propylene (FEP)	19	30 AWG	Braid Foil	4	Multi-Conductor
Belden Inc. 83654 0025000	18 AWG	Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum			200 °C	-70 °C	0.356 mm	0.014 in	Aluminum Copper Tinned	300 V	UL Style CMP	Audio Control Instrumentation	85 % 100 %	0.195 in	4.95 mm	Red	Fluorinated Ethylene-Propylene (FEP)	19	30 AWG	Braid Foil	4	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 13.08

General part information

4 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 500.0' (152.4m)
