3-794681-4

Active

TE Connectivity AMP Connectors

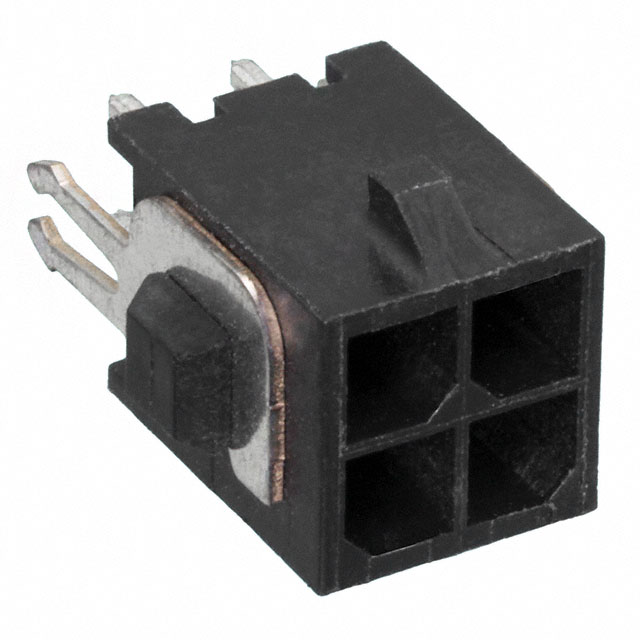

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-794681-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.19
		10	$ 1.09
		377	$ 0.96
		754	$ 0.95

Description

General part information

794681 Series

Connector Header Through Hole 4 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794681-4	794681 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794681 Series

CONN HEADER VERT 10POS 3MM

Part	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mounting Type	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Connector Type	Contact Finish - Post	Material Flammability Rating	Style	Number of Positions Loaded	Contact Finish - Mating
TE Connectivity AMP Connectors 4-794681-0	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	10	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 4-794681-4	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	14	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 5-794681-4	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	24	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 794681-6	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	6	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin-Lead	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 5-794681-0	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	20	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 4-794681-8	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	18	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 794681-8	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	8	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin-Lead	UL94 V-0	Board to Cable/Wire	All	Gold, Gold or Gold-Palladium
TE Connectivity AMP Connectors 794681-2	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square			Brass	Black	2	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin-Lead	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 3-794681-4	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	4	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin	UL94 V-0	Board to Cable/Wire	All	Gold
TE Connectivity AMP Connectors 2-794681-4	250 VDC	2.54 µm	100 µin	3 mm	0.118 in	Male Pin	Through Hole	Shrouded - 4 Wall	Square	0.118 in	3 mm	Brass	Black	24	9.25 mm	0.364 in	General Purpose	15 µin	0.38 µm	Locking Ramp	Nylon, Polyamide (PA)	Varies by Wire Gauge	-40 °C	105 ░C	Solder	3.18 mm	0.125 in	2	Header	Tin-Lead	UL94 V-0	Board to Cable/Wire	All	Gold
