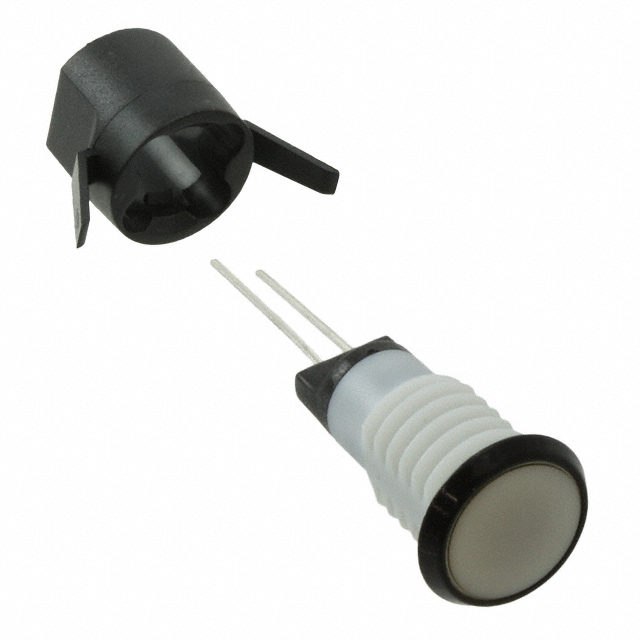

PM5-KAD
ObsoleteBivar Inc.
PNL MNT 605NM 25MCD 2V AMBER
PM5-KAD
ObsoleteBivar Inc.
PNL MNT 605NM 25MCD 2V AMBER
Description
General part information
PM5-KAD
LED Panel Indicator Amber Diffused 120° 2V 20mA
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-KAD |
|---|---|
| Current | 20 mA |
| Lamp Color | Amber |
| Lens Color | White |
| Lens Diameter | 9.7 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Panel Cutout Dimension | 0.39 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage | 2 V |
| Wavelength - Peak | 605 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
