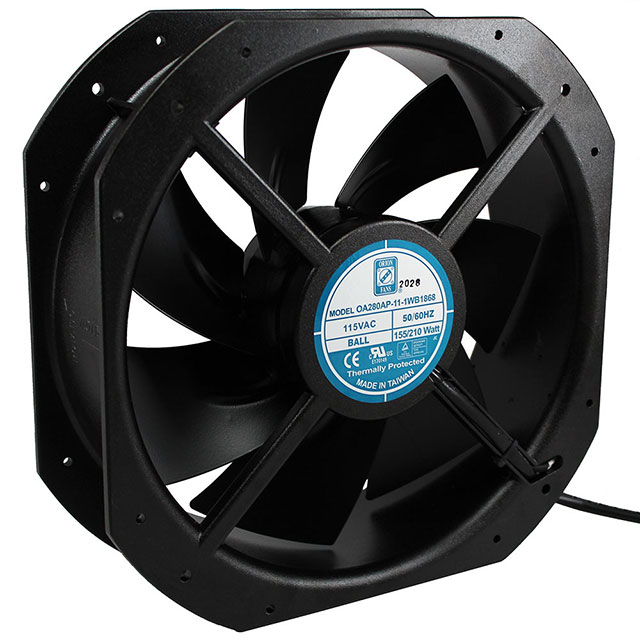

OA280AP-11-1WB1868 - OA280AP-11-1WB1868_view1

OA280AP-11-1WB1868

Active
Orion Fans

AC AXIAL FAN, 115V, SQUARE, 280 MM, 89 MM, BALL BEARING, 1300 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous ENTechnical Data Sheet EN+1
OA280AP-11-1WB1868 - OA280AP-11-1WB1868_view1

OA280AP-11-1WB1868

Active
Orion Fans

AC AXIAL FAN, 115V, SQUARE, 280 MM, 89 MM, BALL BEARING, 1300 CFM

Deep-Dive with AI

DocumentsMiscellaneous ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationOA280AP-11-1WB1868
Air Flow1300 CFM
Air Flow36.4 m³/min
Approval AgencyTUV, CE, cURus, UR
Bearing TypeBall
Fan TypeTubeaxial
FeaturesCapacitor, Thermal Overload Protector (TOP)
Ingress ProtectionIP68 - Dust Tight, Waterproof
Lifetime @ Temp.50000 Hrs
Material - BladeSteel
Material - FrameAluminum
Noise73 dB(A)
Power (Watts)210 W
RPM3200 RPM
Size / Dimension [x]280 mm
Size / Dimension [y]280 mm
Static Pressure0.75 in H2O
Static Pressure186.8 Pa
Termination2 Wire Leads
Voltage - Rated115 VAC
Weight3.4 kg
Weight7.4 lbs
Width [y]89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 174.57
NewarkEach 5$ 212.46
10$ 207.01
25$ 196.12

Description

General part information

OA280AP-11-1WB1868

Fan Tubeaxial 115VAC Square - 280mm L x 280mm H Ball 1300.0 CFM (36.40m³/min) 2 Wire Leads
