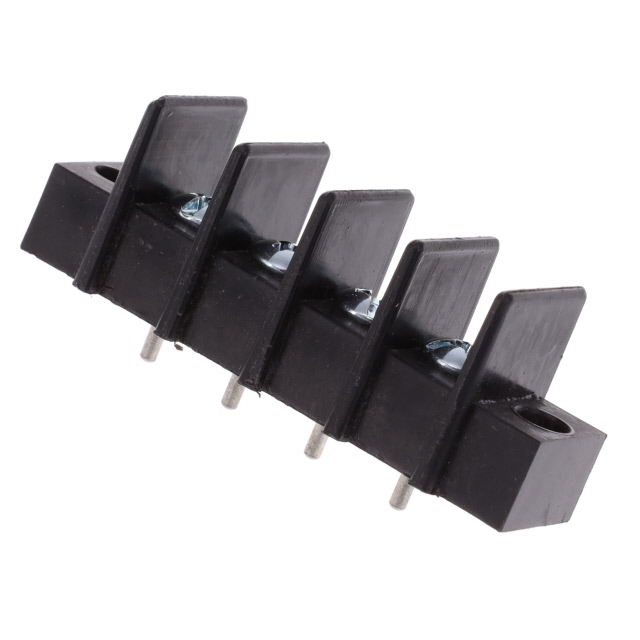

CBP-4

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBP-4

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 4.17

Description

General part information

CBP Series

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	CBP-4	CBP Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyester Thermoplastic	Polyester Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	4	4 - 26
Number of Rows	1	1
Number of Wire Entries	4	4 - 26
Operating Temperature	140 °C	140 °C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Pitch [x]

Top Termination

Number of Circuits

Terminal Block Type

Mounting Type

Wire Gauge [Min]

Wire Gauge [Max]

Number of Wire Entries

Operating Temperature

Color

Voltage Rating

Material Flammability Rating

Number of Rows

Bottom Termination

Features

Current Rating (Amps)

Material - Insulation

Barrier Type

Terminal Screw Material

Curtis Industries

CBP-5

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-17

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-12

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-6

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-13

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-24

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-20

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-11

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-21

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Curtis Industries

CBP-26

9.53 mm

0.375 in

Screws

Barrier Block

Chassis, Panel, Through Hole

12 AWG

22 AWG

140 °C

Black

300 VDC

UL94 V-0

PC Pin

Flange

20 A

Polyester Thermoplastic

2 Wall (Dual)

Steel

Part	Pitch [x]	Pitch [x]	Top Termination	Number of Circuits	Terminal Block Type	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Operating Temperature	Color	Voltage Rating	Material Flammability Rating	Number of Rows	Bottom Termination	Features	Current Rating (Amps)	Material - Insulation	Barrier Type	Terminal Screw Material
Curtis Industries CBP-5	9.53 mm	0.375 in	Screws	5	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	5	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-17	9.53 mm	0.375 in	Screws	17	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	17	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-12	9.53 mm	0.375 in	Screws	12	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	12	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-6	9.53 mm	0.375 in	Screws	6	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	6	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-13	9.53 mm	0.375 in	Screws	13	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	13	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-24	9.53 mm	0.375 in	Screws	24	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG		140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-20	9.53 mm	0.375 in	Screws	20	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	20	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-11	9.53 mm	0.375 in	Screws	11	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	11	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-21	9.53 mm	0.375 in	Screws	21	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	21	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
Curtis Industries CBP-26	9.53 mm	0.375 in	Screws	26	Barrier Block	Chassis, Panel, Through Hole	12 AWG	22 AWG	26	140 °C	Black	300 VDC	UL94 V-0	1	PC Pin	Flange	20 A	Polyester Thermoplastic	2 Wall (Dual)	Steel
