2907976

Active

Phoenix Contact

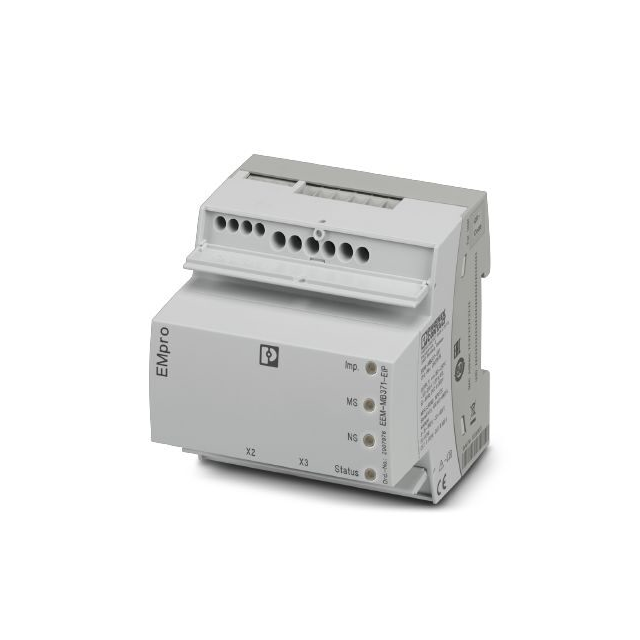

DIN-MOUNT ENERGY METER WITHOUT D

Search across all available documentation for this part.

Active

Phoenix Contact

DIN-MOUNT ENERGY METER WITHOUT D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2907976	29079 Series

Display Type	-	LCD - Black Characters, Backlight
Measuring Range [Max]	690 VAC, 5 A	5 - 690 VAC
Measuring Range [Min]	0 A, 35 VAC	0 - 35 A
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	250 V, 230 VAC	230 - 250 V
Voltage - Supply [Min]	100 VAC, 150 VDC	100 - 150 VAC

DIN-MOUNT ENERGY METER WITHOUT D

Part	Type	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Display Type
Phoenix Contact 2907984	Energy Monitor	Current (3-Phase), Voltage, Wattage	0 A, 35 VAC	5 A, 690 VAC	DIN Rail	230 VAC, 250 V	100 VAC, 150 VDC	Screw Terminal	55 °C	-10 °C
Phoenix Contact 2907976	Energy Monitor	Current (3-Phase), Voltage, Wattage	0 A, 35 VAC	5 A, 690 VAC	DIN Rail	230 VAC, 250 V	100 VAC, 150 VDC	Screw Terminal	55 °C	-10 °C
Phoenix Contact 2907983	Energy Monitor	Current (3-Phase), Voltage, Wattage	0 A, 35 VAC	5 A, 690 VAC	DIN Rail	230 VAC, 250 V	100 VAC, 150 VDC	Screw Terminal	55 °C	-10 °C	LCD - Black Characters, Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 898.63

General part information

Energy Monitor Display DIN Rail
