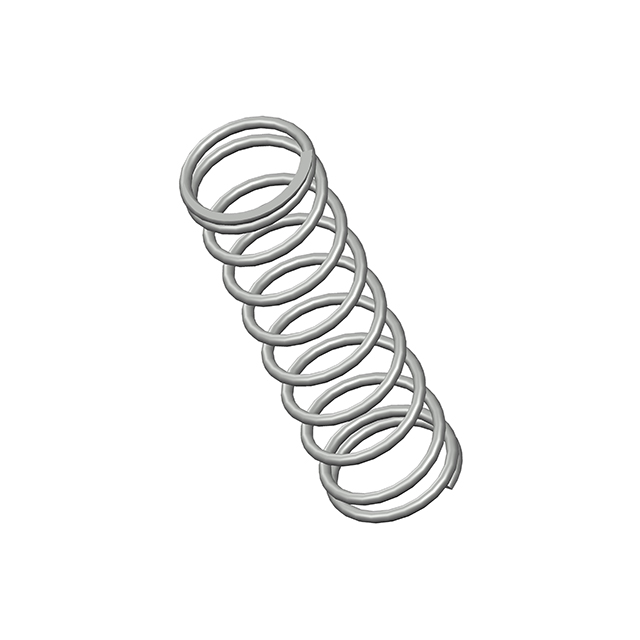

71960CS
ActiveCentury Spring Corp
COMP O= .720,L= 2.50,W= .0625
71960CS
ActiveCentury Spring Corp
COMP O= .720,L= 2.50,W= .0625
Description
General part information
71960CS
COMP O= .720,L= 2.50,W= .0625
Technical Specifications
Parameters and characteristics for this part
| Specification | 71960CS |
|---|---|
| Diameter - Inside | 0.594 in |
| Diameter - Outside | 0.72 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 9.9 lbs/in |
| Type | Compression |
| Wire Diameter | 0.063 in |
