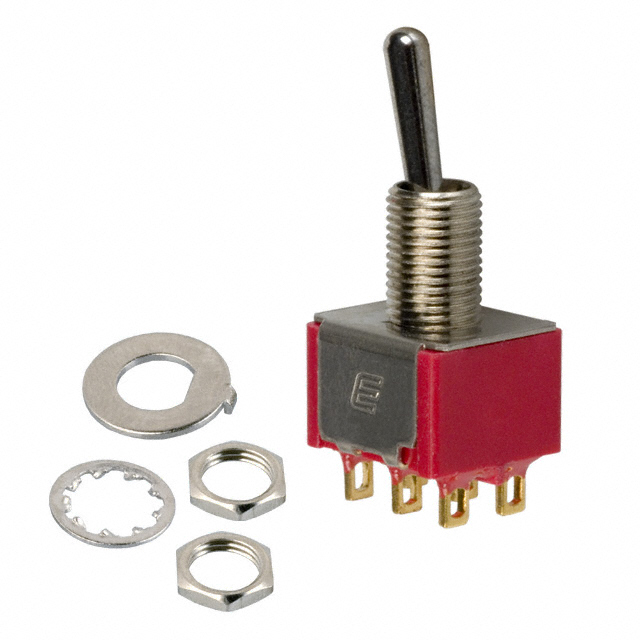

100DP1T1B1M1REH

Active

E-Switch

20V 20V DPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100DP1T1B1M1REH

Active

E-Switch

20V 20V DPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.02
		10	$ 3.60
		25	$ 3.41
		96	$ 3.11
		288	$ 2.98
		576	$ 2.73
		1056	$ 2.61
LCSC	Piece	1	$ 4.88
		192	$ 1.95
		480	$ 1.88

Description

General part information

100DP1 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100DP1T1B1M1REH	100DP1 Series

Actuator Length [x]	10.41 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Flat Anti-Rotation, Standard Round, Locking Lever
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole, Vertical, Right Angle, Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-On	On-On
Termination Style	Solder Lug	Solder Lug, PC Pin, Quick Connect - 0.062" (1.5mm), Wire Wrap
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100DP1 Series

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Electrical Life	Switch Function	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Length [x]	Illumination	Circuit	Mounting Type
E-Switch 100DP1T6B11M1REH	20 V	1/4-40	20 V	0.25 in	Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	Solder Lug	Flat Anti-Rotation	-30 ░C	85 °C	Brass, Chrome Plated	12.3 mm	Non-Illuminated	DPDT
E-Switch 100DP1T2B4M7QE	28 V	Unthreaded	120 V		Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	5.08 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T6B11M1QEH	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	Solder Lug	Flat Anti-Rotation	-30 ░C	85 °C	Brass, Chrome Plated	12.3 mm	Non-Illuminated	DPDT
E-Switch 100DP1T1B2M6RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Through Hole, Right Angle
E-Switch 100DP1T1B2M7RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T1B1M6QE	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Panel Mount, Right Angle
E-Switch 100DP1T2B2M2RE	20 V	Unthreaded	20 V		Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	5.08 mm	Non-Illuminated	DPDT	Through Hole
E-Switch 100DP1T7B13M1QE	28 V	15/32-32	120 V	11.91 mm	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	Solder Lug	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	12.98 mm	Non-Illuminated	DPDT
E-Switch 100DP1T1B3M7QE	28 V	1/4-40	120 V	0.25 in	Epoxy Sealed Terminals	5 A	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	10.41 mm	Non-Illuminated	DPDT	Right Angle, Through Hole, Vertical
E-Switch 100DP1T9B1M7REH	20 V	1/4-40	20 V	0.25 in	Epoxy Sealed Terminals	0.4 VA	40000 Cycles	On-On	PC Pin	Standard Round	-30 ░C	85 °C	Brass, Chrome Plated	21.34 mm	Non-Illuminated	DPDT	Panel Mount, Right Angle, Vertical
