PEC17SBBN

Active

Sullins Connector Solutions

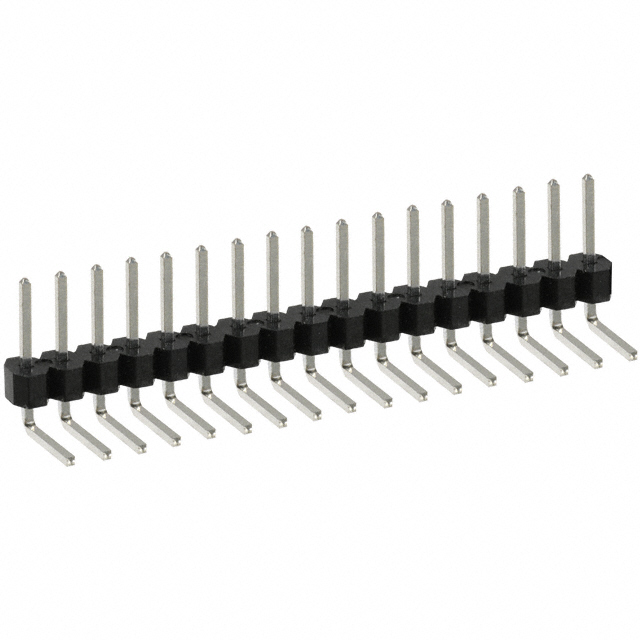

CONN HEADER R/A 17POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC17SBBN

Active

Sullins Connector Solutions

CONN HEADER R/A 17POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC17SBBN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	5.08 mm
Contact Length - Post [x]	0.2 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC17 Series

Part	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Shrouding	Termination	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Shape	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Mounting Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PEC17SGAN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	Black	3.56 mm	0.14 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.318 "	8.08 mm	Through Hole Right Angle	1
Sullins Connector Solutions PEC17DAHN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.23 in		Through Hole	2	2.54 mm	0.1 in	5.84 mm	34	1.15 in	29.21 mm	20.83 mm	0.82 in
Sullins Connector Solutions PEC17SAGN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.23 in		Through Hole	1			5.84 mm		1.05 in	26.67 mm	18.29 mm	0.72 "
Sullins Connector Solutions PEC17SGBN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	3.56 mm	0.14 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.318 "	8.08 mm	Through Hole Right Angle	1							5.08 mm	0.2 in
Sullins Connector Solutions PEC17SFCN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.318 "	8.08 mm	Through Hole	1					0.738 "	18.75 mm	8.13 mm	0.32 in
Sullins Connector Solutions PEC17SBBN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	3.56 mm	0.14 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.23 in		Through Hole Right Angle	1			5.84 mm				5.08 mm	0.2 in
Sullins Connector Solutions PEC17SFDN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.318 "	8.08 mm	Through Hole	1					0.838 in	21.29 mm	10.67 mm	0.42 in
Sullins Connector Solutions PEC17DBAN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A	2.54 mm	0.1 in	Black	6.1 mm	0.24 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.23 in		Through Hole Right Angle	2	2.54 mm	0.1 in	5.84 mm	34
Sullins Connector Solutions PEC17DFCN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A			Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.318 "	8.08 mm	Through Hole	2	2.54 mm	0.1 in		34	0.738 "	18.75 mm	8.13 mm	0.32 in
Sullins Connector Solutions PEC17SABN	Polybutylene Terephthalate (PBT)	Breakaway Header	2.54 çm	100 çin	Male Pin	0.1 in	2.54 mm	3 A	5.84 mm	0.23 in	Black	2.54 mm	0.1 in	Unshrouded	Solder	Tin	125 °C	-65 ░C	Board to Board Cable	Phosphor Bronze	All	2.54 µm	100 µin	Push-Pull	Square	UL94 V-0	0.23 in		Through Hole	1			5.84 mm		0.56 in	14.22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25
		10	$ 1.09
		100	$ 0.97
		500	$ 0.81
		1000	$ 0.69
		5000	$ 0.66

Description

General part information

PEC17 Series

Connector Header Through Hole, Right Angle 17 position 0.100" (2.54mm)
