IL254-73

Active

Carling Technologies

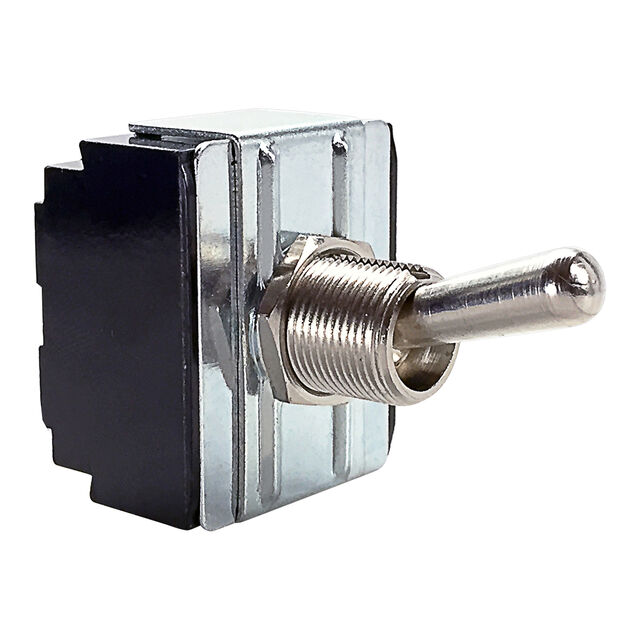

SWITCH TOGGLE 3PDT 15A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE 3PDT 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IL254-73	IL254 Series

Actuator Length [x]	17.45 mm	17.45 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Paddle, Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	3PDT	4PDT, 3PDT
Current Rating (Amps)	15 A	15 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-On	On-On
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V

SWITCH TOGGLE 4PDT 15A 125V

Part	Operating Temperature [Max]	Circuit	Bushing Thread	Actuator Type	Electrical Life	Illumination	Actuator Material	Voltage Rating - AC	Termination Style	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function
Carling Technologies IL254-NBL8	85 °C	4PDT	15/32-32	Paddle	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal	17.45 mm	12.7 mm	15 A	On-On
Carling Technologies IL254-78	85 °C	4PDT	15/32-32	Standard Round	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal	17.45 mm	12.7 mm	15 A	On-On
Carling Technologies IL254-B8	85 °C	4PDT	15/32-32	Standard Round	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal		12.7 mm	15 A	On-On
Carling Technologies IL254-63	85 °C	4PDT	15/32-32	Standard Round	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal		12.7 mm	15 A	On-On
Carling Technologies IL254-C8	85 °C	4PDT	15/32-32		50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal		12.7 mm	15 A	On-On
Carling Technologies IL254-73/POLY	85 °C	4PDT	15/32-32	Standard Round	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal	17.45 mm	12.7 mm	15 A	On-On
Carling Technologies IL254-NBL3	85 °C	4PDT	15/32-32	Paddle	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal	17.45 mm	12.7 mm	15 A	On-On
Carling Technologies IL254-73	85 °C	3PDT	15/32-32	Standard Round	50000 Cycles	Non-Illuminated	Brass, Nickel Plated	125 V	Screw Terminal	17.45 mm	12.7 mm	15 A	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 42.36

General part information

Toggle Switch 3PDT Panel Mount
