T-WORK8000-160-160-0.5

Active

Shiu Li Technology Co., Ltd.

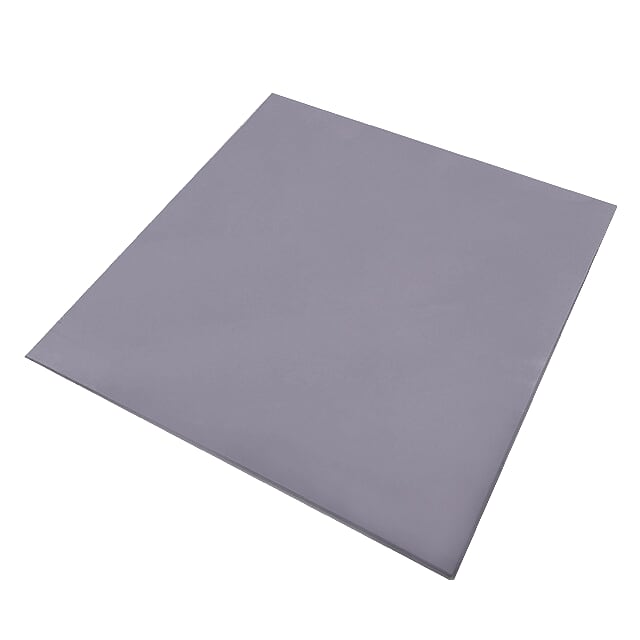

THERM PAD 160MMX160MM PURP

Search across all available documentation for this part.

Active

Shiu Li Technology Co., Ltd.

THERM PAD 160MMX160MM PURP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T-WORK8000-160-160-0.5	T-WORK8000 Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Color	Purple	Purple
Material	Silicone	Silicone
Outline [x]	160 mm	160 mm
Outline [y]	160 mm	160 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	15 W/m-K	15 W/m-K
Thickness	0.508 mm	0.508 - 3 mm
Thickness	0.02 in	0.02 - 0.118 in
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet
Usage	Thermally Conductive	Thermally Conductive

THERM PAD 160MMX160MM PURP

Part	Outline [x]	Outline [y]	Shape	Storage/Refrigeration Temperature	Usage	Color	Shelf Life Start	Thermal Conductivity	Material	Adhesive	Shelf Life	Type	Thickness	Thickness
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-1.0	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	0.991 mm	0.039 in
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-0.5	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	0.508 mm	0.02 in
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-2.0	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	2 mm	0.079 in
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-1.5	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	1.5 mm	0.0591 "
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-3.0	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	3 mm	0.118 in
Shiu Li Technology Co., Ltd. T-WORK8000-160-160-2.5	160 mm	160 mm	Square	Room Temperature	Thermally Conductive	Purple	Date of Shipment	15 W/m-K	Silicone	Tacky - Both Sides	120 Months	Gap Filler Pad, Sheet	2.489 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Purple 160.00mm x 160.00mm Square Tacky - Both Sides

Technical documentation and resources

No documents available
