Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 16282-3SG-311 | 16282-3S Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [diameter] | 2.29 mm | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in | 0.09 - 0.14 in |
| Cable Opening [diameter] | 3.56 mm | 3.56 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
16282-3S Series

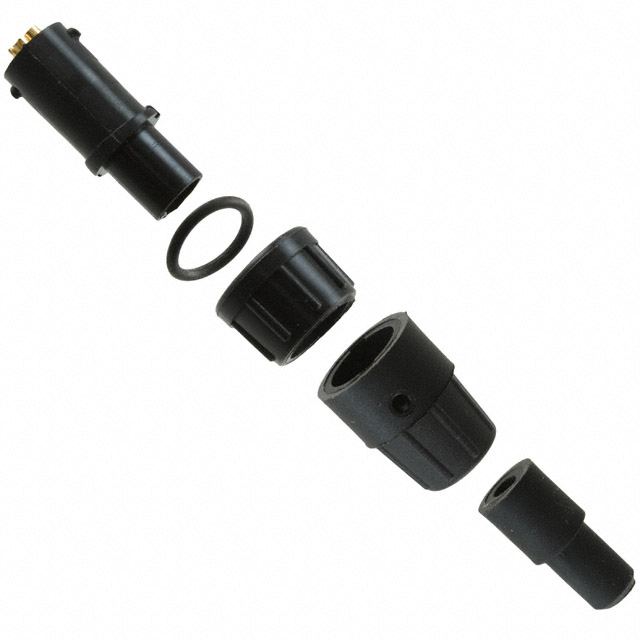

CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Mounting Type | Material Flammability Rating | Applications | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Primary Material | Contact Finish - Mating | Fastening Type | Connector Type | Backshell Material, Plating | Orientation | Color | Ingress Protection | Shielding | Current Rating (Amps) | Voltage Rating | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 16282-3SG-311 | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | Free Hanging (In-Line) | UL94 HB | Data, Industrial, Instrumentation, Medical | Copper Alloy | 85 °C | -40 °C | Backshell | Plastic | Gold | Bayonet Lock | Female Sockets, Plug | Thermoplastic | Keyed | Black | IP67 - Dust Tight, Waterproof | Unshielded | 7.5 A | 600 VAC | ||||
Conxall/Switchcraft 16282-3SG-318 | Free Hanging (In-Line) | UL94 HB | Data, Industrial, Instrumentation, Medical | Copper Alloy | 85 °C | -40 °C | Backshell | Plastic | Gold | Bayonet Lock | Female Sockets, Plug | Thermoplastic | Keyed | Black | IP67 - Dust Tight, Waterproof | Unshielded | 7.5 A | 600 VAC | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.24 | |
| 10 | $ 10.12 | |||
| 25 | $ 9.53 | |||
| 50 | $ 9.29 | |||
| 100 | $ 9.04 | |||
| 250 | $ 8.07 | |||
| 500 | $ 7.58 | |||
| 1000 | $ 6.70 | |||
Description
General part information
16282-3S Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
