Description
General part information

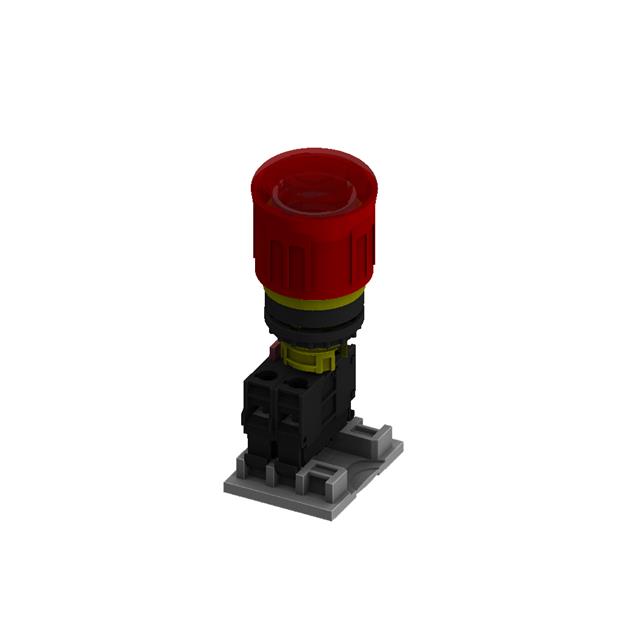

M22EL-PSB10-E230R
SWITCH E-STOP PULL RESET 6A 230V
Technical Specifications
Parameters and characteristics for this part
| Specification | M22EL-PSB10-E230R |
|---|---|
| Circuit | SPST-NO |
| Current Rating | 6 A, 3 A |
| Features | Illuminated (Red) |
| Illumination Voltage (Nominal) | 230 VAC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Pull |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
