FMCA2090-6
ActiveFairview Microwave
CBL ASSY 1.85MMPLUG-1.85MMPLUG 6
FMCA2090-6
ActiveFairview Microwave
CBL ASSY 1.85MMPLUG-1.85MMPLUG 6
Description
General part information
FMCA2090-6

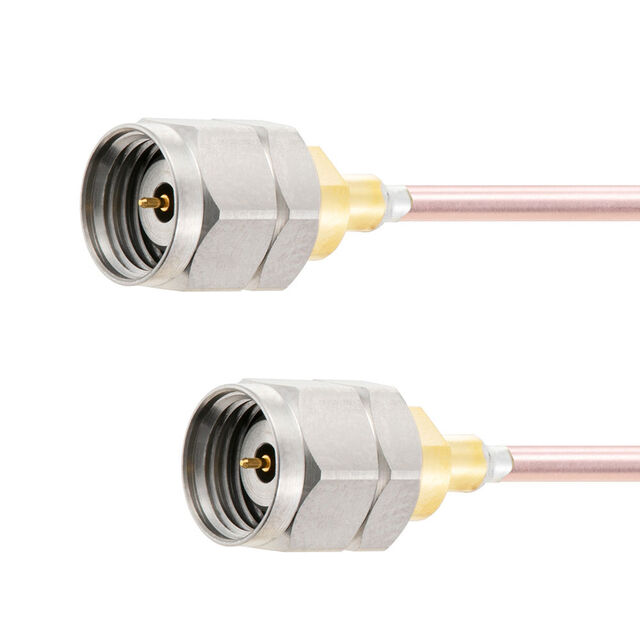

Cable Assembly Coaxial 1.85mm to 1.85mm 0.070" Semi-Rigid Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2090-6 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 1.85 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 1.85 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.07 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Semi-Rigid Cable |
| Cable Type Size | 0.07 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 70 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | 1.85mm to 1.85mm |
