BTS712204ESAXUMA1
ActiveInfineon Technologies
THE BTS71220-4ESA IS A SPI POWER CONTROLLER, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
BTS712204ESAXUMA1
ActiveInfineon Technologies
THE BTS71220-4ESA IS A SPI POWER CONTROLLER, PROVIDING PROTECTION FUNCTIONS AND DIAGNOSIS
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | BTS712204ESAXUMA1 |
|---|---|
| Current - Output Source/Sink | 5 A, 3 A |
| Current - Supply | 80 µA |
| Dimming | False |
| Frequency | 5 MHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |

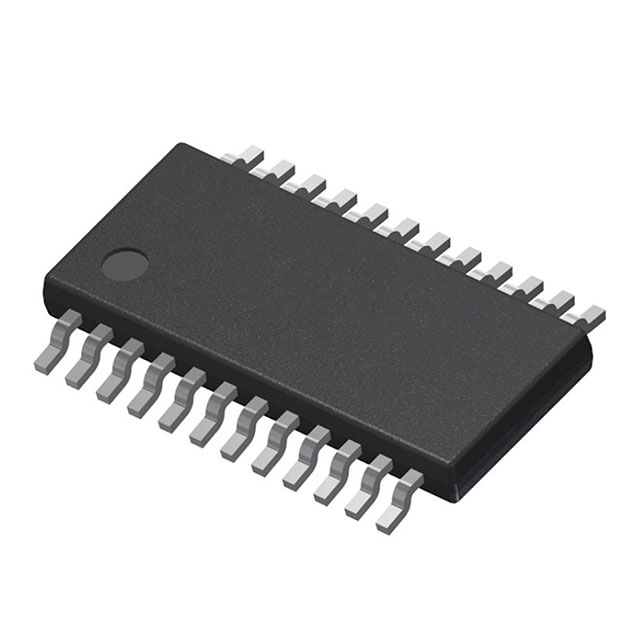

| Package / Case | 24-TSSOP Exposed Pad |
| Package / Case [custom] | 3.9 mm |
| Package / Case [custom] | 0.154 in |
| Qualification | AEC-Q100 |
| Supplier Device Package | PG-TSDSO-24 |
| Type | HID Lamp Controller |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.74 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.33 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.82 | |||
| Digi-Reel® | 1 | $ 2.74 | ||
| 10 | $ 2.46 | |||
| 25 | $ 2.33 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.82 | |||
| Tape & Reel (TR) | 3000 | $ 1.82 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.69 | |
| 10 | $ 3.53 | |||
| 25 | $ 3.45 | |||
| 50 | $ 3.36 | |||
| 100 | $ 3.27 | |||
| 250 | $ 3.15 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 3.01 | |||
Description
General part information
BTS712204 Series
HID Lamp Controller Controller 5MHz No PG-TSDSO-24
Documents
Technical documentation and resources
