SPMWHD32AMD7XAP3S0

Active

Samsung Semiconductor, Inc.

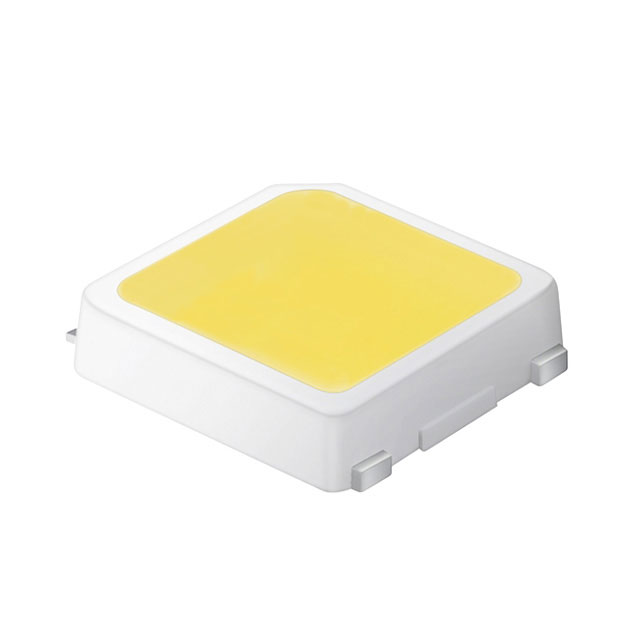

LED LM301B COOL WHITE 6500K 1212

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

SPMWHD32AMD7XAP3S0

Active

Samsung Semiconductor, Inc.

LED LM301B COOL WHITE 6500K 1212

Deep-Dive with AI

DocumentsSPMWHD32AMD3XAT0L2 SPMWHD32AMD3XAT0L2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.39
		10	$ 0.27
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
		2000	$ 0.13
	Digi-Reel®	1	$ 0.39
		10	$ 0.27
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
		2000	$ 0.13
	Tape & Reel (TR)	4000	$ 0.12
		8000	$ 0.12
		12000	$ 0.11
		20000	$ 0.11
		28000	$ 0.11
		40000	$ 0.11

Description

General part information

SPMWHD32 Series

LED Lighting LM301B White, Cool 6500K 2.75V 65mA 120° 1212 (3030 Metric)

Documents

Technical documentation and resources

SPMWHD32AMD3XAT0L2

Datasheet

SPMWHD32AMD3XAT0L2

Datasheet

Specification	SPMWHD32AMD7XAP3S0	SPMWHD32 Series

CCT (K)	6500 K	2700 - 6500 K
Color	Cool, White	White, Warm, Cool, Neutral
CRI (Color Rendering Index)	90	70 - 90
Current - Max [Max]	180 mA	180 - 200 mA
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	31 lm	29 - 41 lm
Flux @ 25°C, Current - Test	-	32 - 42 lm
Flux @ 25°C, Current - Test	-	26 - 39 lm
Flux @ 25°C, Current - Test	-	40 lm
Flux @ 25°C, Current - Test [Max]	34 lm	34 lm
Flux @ 25°C, Current - Test [Min]	28 m	28 - 36 lm
Flux @ 25░C, Current - Test	-	38 lm
Flux @ 25░C, Current - Test	-	36 lm
Flux @ 25░C, Current - Test	-	34 lm
Flux @ 85°C, Current - Test	-	39 lm
Height - Seated (Max) [Max] [z]	0.85 mm	0.85 - 0.9 mm
Height - Seated (Max) [Max] [z]	0.033 "	0.033 - 0.035 "
Lumens/Watt @ Current - Test	173 lm/W	173 - 229 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	1212	1212
Supplier Device Package	-	3030
Thermal Resistance of Package	-	7.5 ░C/W
Thermal Resistance of Package [diameter]	7.5 °C/W	7.5 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.75 V	2.75 - 2.8 V

Part

Thermal Resistance of Package [diameter]

Mounting Type

Size / Dimension [x]

Size / Dimension [y]

CCT (K)

Current - Max [Max]

Supplier Device Package

Current - Test

Voltage - Forward (Vf) (Typ)

Flux @ 25°C, Current - Test [Max]

Flux @ 25°C, Current - Test

Flux @ 25°C, Current - Test [Min]

Viewing Angle

Color

Height - Seated (Max) [Max] [z]

Lumens/Watt @ Current - Test

Package / Case

CRI (Color Rendering Index)

Supplier Device Package

Flux @ 25°C, Current - Test [Max]

Flux @ 25°C, Current - Test [Min]

Flux @ 25°C, Current - Test [Max]

Flux @ 85°C, Current - Test

Thermal Resistance of Package

Flux @ 25░C, Current - Test [Max]

Flux @ 25░C, Current - Test

Flux @ 25░C, Current - Test [Min]

Samsung Semiconductor, Inc.

SPMWHD32AMD3XAU0S0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

3500 K

180 mA

3030

65 mA

2.75 V

40 lm

37 lm

34 lm

120 °

Warm, White

0.85 mm

0.033 "

207 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD7XARSS0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

5000 K

180 mA

3030

65 mA

2.75 V

34 lm

31 lm

28 lm

120 °

Cool, White

0.85 mm

0.033 "

173 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD3XARSS0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

5000 K

180 mA

3030

65 mA

2.75 V

39 lm

120 °

Cool, White

0.85 mm

0.033 "

218 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD7XAV3S0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

180 mA

65 mA

2.75 V

32 lm

29 lm

26 m

120 °

Warm, White

0.85 mm

0.033 "

1212

3030 Metric

1212

Samsung Semiconductor, Inc.

SPMWHD32AMD3XAUSS0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

3500 K

180 mA

3030

65 mA

2.75 V

40 lm

37 lm

34 lm

120 °

Warm, White

0.85 mm

0.033 "

207 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD3XAT0S0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

4000 K

180 mA

3030

65 mA

2.75 V

39 lm

120 °

Neutral, White

0.85 mm

0.033 "

218 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMVKXAV3SW

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

3000 K

200 mA

3030

65 mA

2.8 V

34 lm

120 °

Warm, White

0.9 mm

0.035 "

198 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD3XAVSS0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

180 mA

3030

65 mA

2.75 V

40 lm

37 lm

34 lm

120 °

Warm, White

0.85 mm

0.033 "

207 lm/W

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD7XAWSS0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

2700 K

180 mA

3030

65 mA

2.75 V

29 lm

120 °

Warm, White

0.85 mm

0.033 "

1212

3030 Metric

Samsung Semiconductor, Inc.

SPMWHD32AMD3XAV0S0

7.5 °C/W

Surface Mount

0.118 in

3 mm

0.118 in

180 mA

3030

65 mA

2.75 V

40 lm

37 lm

34 lm

120 °

Warm, White

0.85 mm

0.033 "

207 lm/W

1212

3030 Metric

Part	Thermal Resistance of Package [diameter]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Current - Max [Max]	Supplier Device Package	Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Viewing Angle	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Package / Case	Package / Case	CRI (Color Rendering Index)	Supplier Device Package
Samsung Semiconductor, Inc. SPMWHD32AMD3XAU0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3500 K	180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XARSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	5000 K	180 mA	3030	65 mA	2.75 V	34 lm	31 lm	28 lm	120 °	Cool, White	0.85 mm	0.033 "	173 lm/W	1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XARSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	5000 K	180 mA	3030	65 mA	2.75 V		39 lm		120 °	Cool, White	0.85 mm	0.033 "	218 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XAV3S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA		65 mA	2.75 V	32 lm	29 lm	26 m	120 °	Warm, White	0.85 mm	0.033 "		1212	3030 Metric	90	1212
Samsung Semiconductor, Inc. SPMWHD32AMD3XAUSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3500 K	180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD3XAT0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	4000 K	180 mA	3030	65 mA	2.75 V		39 lm		120 °	Neutral, White	0.85 mm	0.033 "	218 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMVKXAV3SW	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	3000 K	200 mA	3030	65 mA	2.8 V		38	34 lm	120 °	Warm, White	0.9 mm	0.035 "	198 lm/W	1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XAVSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
Samsung Semiconductor, Inc. SPMWHD32AMD7XAWSS0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in	2700 K	180 mA	3030	65 mA	2.75 V		29 lm		120 °	Warm, White	0.85 mm	0.033 "		1212	3030 Metric	90
Samsung Semiconductor, Inc. SPMWHD32AMD3XAV0S0	7.5 °C/W	Surface Mount	0.118 in	3 mm	3 mm	0.118 in		180 mA	3030	65 mA	2.75 V	40 lm	37 lm	34 lm	120 °	Warm, White	0.85 mm	0.033 "	207 lm/W	1212	3030 Metric	70
