6773135331F

Active

DIALIGHT

7MM HR/R PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HR/R PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6773135331F	6773135 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Red	Red
Millicandela Rating	1370 mcd	1370 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	25 °
Voltage	12 V	6 - 12 V
Wavelength - Peak	-	624 nm

LED PANEL INDCATOR RED 6V

Part	Voltage	Ingress Protection	Current	Ratings	Lamp Color	Type	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Viewing Angle	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Millicandela Rating
DIALIGHT 6773135321F	6 V	IP66, NEMA 4X	30 mA	DC	Red	LED	Round	7.2 mm	0.28 in	624 nm	25 °
DIALIGHT 6773135331F	12 V	IP66, NEMA 4X	30 mA	DC	Red	LED	Round					7.11 mm	0.28 "	1370 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

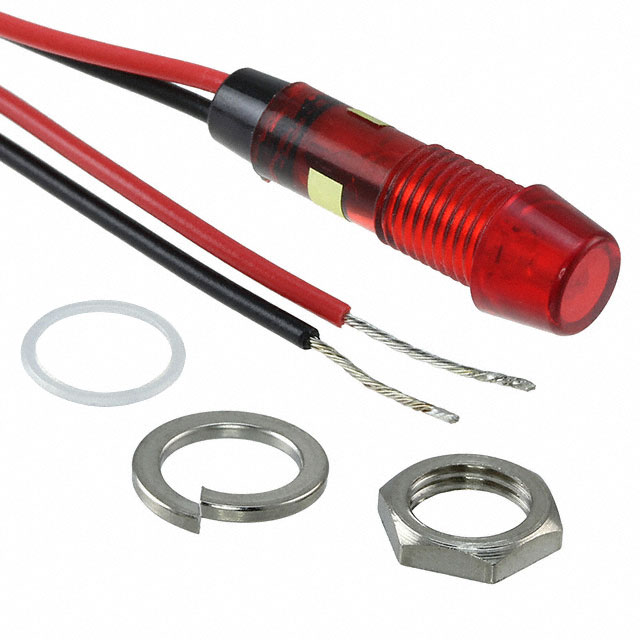

LED Panel Indicator Red 12V 30mA Wire Leads - 6" (152.40mm)
