8424 0101000

Active

Belden Inc.

4 #20 EPDM BRD EPDM

Search across all available documentation for this part.

Active

Belden Inc.

4 #20 EPDM BRD EPDM

Technical Specifications

Parameters and characteristics for this part

Specification	8424 0101000

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	7.47 mm
Jacket (Insulation) Diameter [diameter]	0.294 in
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-50 °C
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	20 AWG

Part	Cable Type	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Shield Material	Conductor Insulation	Conductor Strand	Shield Coverage	Length [x]	Length [x]
Belden Inc. 8424 0101000	Microphone	600 V	Copper Tinned	7.47 mm	0.294 in	Double Braid	20 AWG	1000 ft	304.8 m	90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	4	Black	0.914 mm	0.036 in	Audio	Viscose; Copper Tinned	Ethylene Propylene Terpolymer Rubber (EPDM)	26 34 AWG	85 %
Belden Inc. 8424 010250	Microphone	600 V	Copper Tinned	7.47 mm	0.294 in	Double Braid	20 AWG	3000 "	76.2 m	90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	4	Black	0.914 mm	0.036 in	Audio	Viscose; Copper Tinned	Ethylene Propylene Terpolymer Rubber (EPDM)	26 34 AWG	85 %
Belden Inc. 8424 010100	Microphone	600 V	Copper Tinned	7.47 mm	0.294 in	Double Braid	20 AWG			90 °C	-50 °C	Ethylene Propylene Terpolymer Rubber (EPDM)	4	Black	0.914 mm	0.036 in	Audio	Viscose; Copper Tinned	Ethylene Propylene Terpolymer Rubber (EPDM)	26 34 AWG	85 %	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.32

General part information

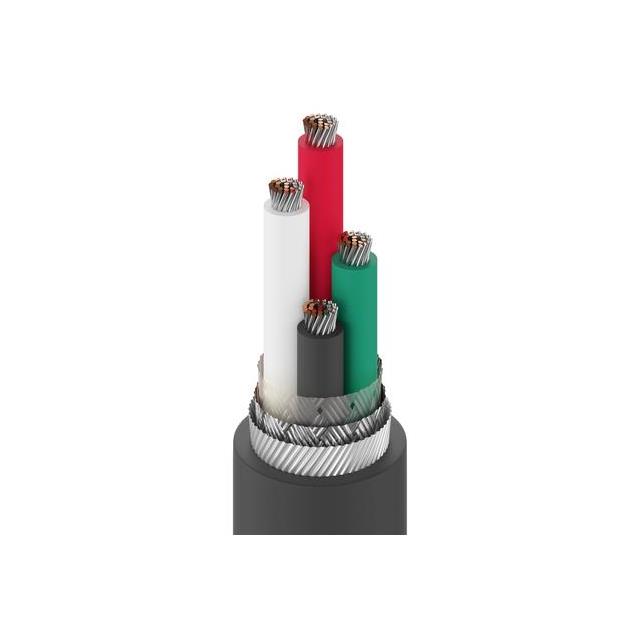

4 Conductor Microphone Cable Black 20 AWG Double Braid 1000.0' (304.8m)
