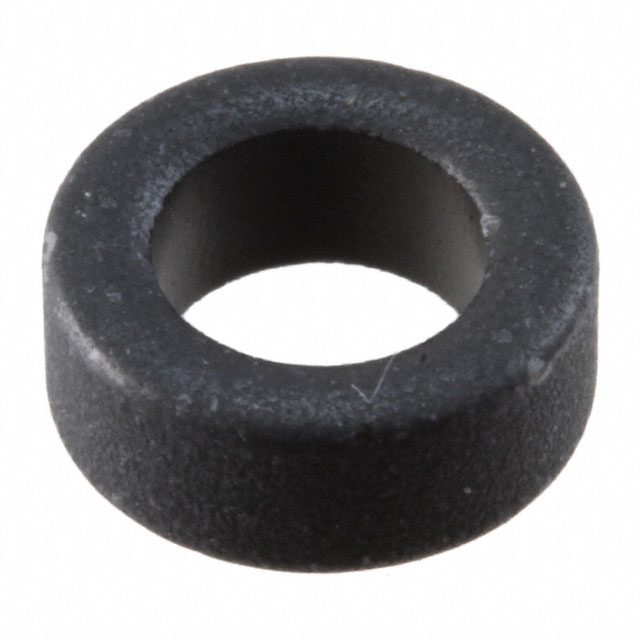

Specification	B64290P0692X046

Core Factor (ΣI/A) mm⁻¹	6.83 mm⁻¹
Core Type	Toroid
Diameter	0.158 in
Effective Area (Ae)	1.41 mm²
Effective Length (le)	9.63 mm
Effective Magnetic Volume (Ve)	13.6 mm³
Finish	Parylene
Gap	Ungapped
Height	0.072 in
Inductance Factor (Al)	2.76 µH
Initial Permeability (µi)	15000
Material	T46
Tolerance	30 %
