2910141

Active

Phoenix Contact

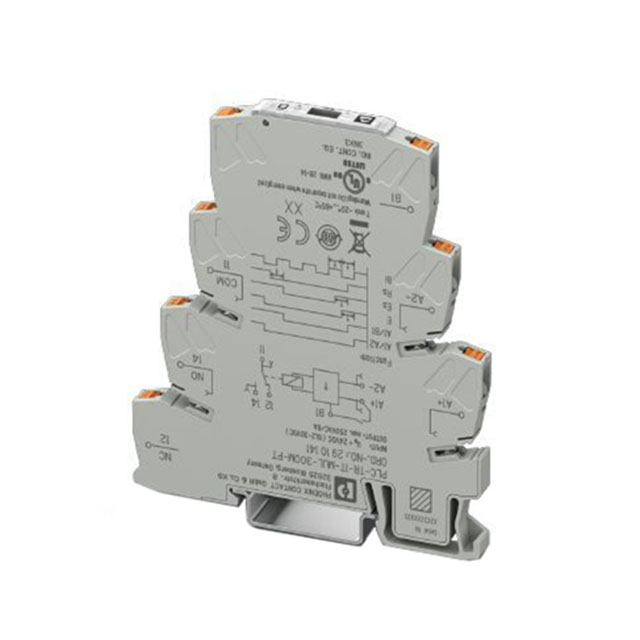

TIME DELAY RELAY, SPDT, 24VDC, DIN RAIL

Search across all available documentation for this part.

Active

Phoenix Contact

TIME DELAY RELAY, SPDT, 24VDC, DIN RAIL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2910141	29101 Series

Coil Current	-	10 mA
Coil Resistance	-	20.5 kOhms
Coil Type	-	Non Latching
Coil Voltage	-	230 VAC
Contact Form	-	SPDT (1 Form C)
Contact Material	-	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	-	6 A
Contact Rating @ Voltage	6.3 A, 250 VAC	6.3 - 250 A
Delay Time [Max]	300 Min	300 Min
Delay Time [Min]	0.1 Sec	0.1 Sec
Features	-	Lighted Indicator, Socket Included
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail
Operate Time	-	7 ms
Operating Temperature	-	-40 °C
Operating Temperature	-	55 °C
Relay Type	Mechanical Relay	General Purpose, Mechanical Relay
Release Time	-	20 ms
Switching Voltage	-	250 VAC
Termination Style	Spring Terminal	Spring Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	24 VDC	24 VDC

RELAY GEN PURPOSE SPDT 6A 230V

Part	Switching Voltage	Coil Type	Contact Rating (Current)	Relay Type	Coil Current	Features	Contact Material	Mounting Type	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Termination Style	Coil Voltage	Operate Time	Release Time	Contact Rating @ Voltage	Function	Delay Time [Max]	Delay Time [Min]	Timing Initiate Method	Timing Adjustment Method	Voltage - Supply
Phoenix Contact 2910110	250 VAC, 250 VDC	Non Latching	6 A	General Purpose	10 mA	Lighted Indicator, Socket Included	Silver Tin Oxide (AgSnO)	DIN Rail	20.5 kOhms	-40 °C	55 °C	SPDT (1 Form C)	Spring Terminal	230 VAC	7 ms	20 ms
Phoenix Contact 2910141				Mechanical Relay				DIN Rail					Spring Terminal				6.3 A, 250 VAC	Programmable (Multi-Function)	300 Min	0.1 Sec	Input Voltage	Screwdriver Slot	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 300 Min Delay 6.3A @ 250VAC DIN Rail
