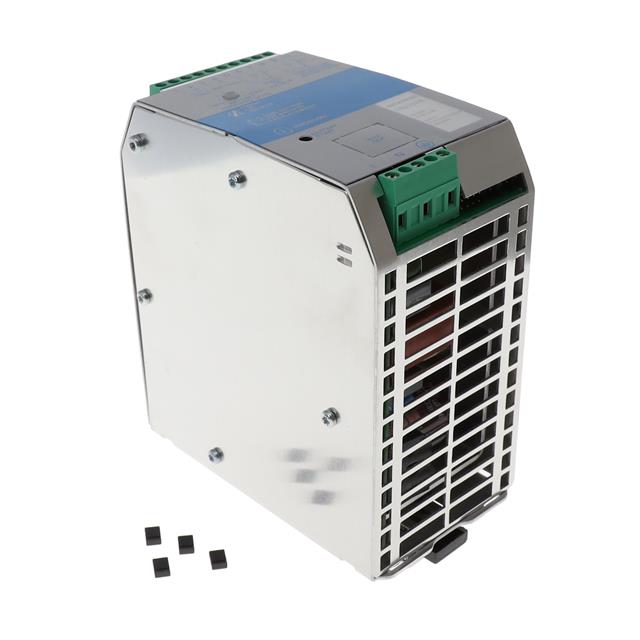

CB1210A

Active

Altech Corporation

BATT CHARGER ENCLOSED 14.4V 10A

Search across all available documentation for this part.

Active

Altech Corporation

BATT CHARGER ENCLOSED 14.4V 10A

Technical Specifications

Parameters and characteristics for this part

BATT CHARGER ENCLOSED 14.4V 10A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Battery Cell Size	Number of Cells	Charge Time	Battery Chemistry	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Features	Charge Current - Max [Max]	Voltage - Nominal	Type	Termination Style	Approval Agency
Altech Corporation CB1210A	70 °C	-25 °C	115.06 mm	135.13 mm	2.56 "	5.32 in	65.02 mm	4.53 "	12 V	1	15 Hrs	Lead Acid, Nickel Cadmium	DIN Rail	305 VAC	90 VAC	LED Indicator	10 A	14.4 V	Enclosed	Terminal Block	CE, cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed Battery Charger 14.4V 10A 12V
