TEL0145

Active

DFRobot

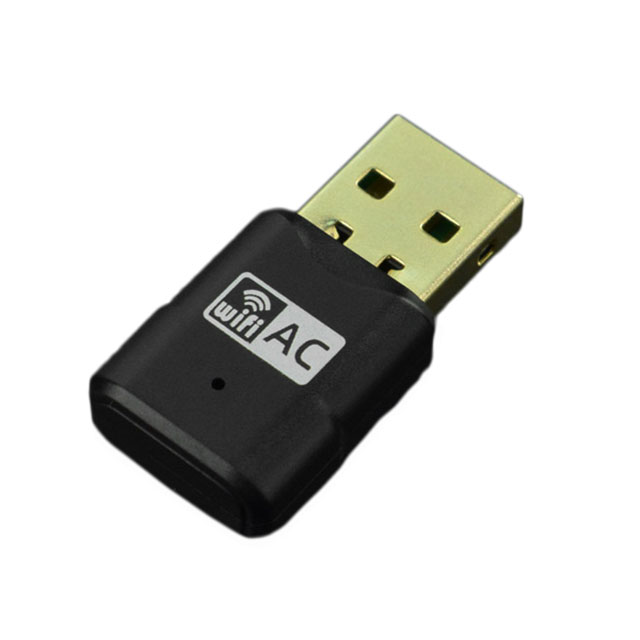

USB DUAL BAND WIFI NETWORK CARD (COMPATIBLE WITH JETSON NANO AND AMP,LATTEPANDA)

Search across all available documentation for this part.

Active

DFRobot

USB DUAL BAND WIFI NETWORK CARD (COMPATIBLE WITH JETSON NANO AND AMP,LATTEPANDA)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEL0145	TEL01 Series

Antenna Type	-	Integrated, Chip + IPEX4, Integrated, Chip + IPEX
Applications	Wireless	GPS, Wireless
Data Rate	-	3 - 150 Gbps
Data Rate (Max)	-	115.2 kbps
Frequency	-	1.561 - 1.602 GHz
Frequency [Max]	2.4835 GHz, 5.825 GHz	1.9 - 5.825 GHz
Frequency [Min]	5.15 GHz, 2.412 GHz	2.412 - 850 GHz
Function	Network Card	Receiver, Network Card
Interface	USB	USB
Memory Size	-	4 GB
Modulation or Protocol	802.11 b/g/-c	GPS, 802.11 b/g/-c
Mounting Type	-	Card Edge
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Protocol	-	Galileo, LTE, GLONASS, GPS, GNSS, WCDMA, GSM
RF Family/Standard	-	Cellular, Navigation
Sensitivity	-	-162 dBm
Serial Interfaces	-	USB, I2C, I2S, UART
Utilized IC / Part	-	SIM8262E-M2, SIM7600G-H-M2, SIM8262A-M2
Voltage - Supply [Max]	5.25 V	4.2 - 5.25 V
Voltage - Supply [Min]	4.75 V	3 - 4.75 V

USB GPS RECEIVER WITH 2M EXTENSION CABLE (COMPATIBLE WITH RASPBERRY PI/ LATTEPANDA/ JETSON NANO)

Part	Sensitivity	Modulation or Protocol	Interface	Data Rate (Max) [Max]	Applications	Frequency	Function	Frequency [Min]	Frequency [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Utilized IC / Part	RF Family/Standard	Antenna Type	Protocol	Serial Interfaces	Package / Case	Data Rate	Memory Size
DFRobot TEL0138	-162 dBm	GPS	USB	115.2 kbps	GPS	1.561 GHz, 1.575 GHz, 1.602 GHz	Receiver
DFRobot TEL0145		802.11 b/g/-c	USB		Wireless		Network Card	2.412 GHz, 5.15 GHz	2.4835 GHz, 5.825 GHz	4.75 V	5.25 V
DFRobot TEL0159										3 V	4.4 V	85 °C	-40 °C	Card Edge	SIM8262E-M2	Cellular, Navigation	Integrated, Chip + IPEX4	Galileo, GLONASS, GNSS, GPS, LTE, WCDMA	I2C, I2S, UART, USB	Module	3 Gbps
DFRobot TEL0158								850 MHz	1.9 GHz	3 V	4.2 V	85 °C	-40 °C	Card Edge	SIM7600G-H-M2	Cellular, Navigation	Integrated, Chip + IPEX	Galileo, GLONASS, GNSS, GPS, LTE, WCDMA	UART, USB	Module	150 Mbps
DFRobot TEL0160										3 V	4.4 V	85 °C	-40 °C	Card Edge	SIM8262A-M2	Cellular, Navigation	Integrated, Chip + IPEX	GNSS, GPS, GSM, LTE, WCDMA	I2C, I2S, UART, USB	Module	3 Gbps	4 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 8.05
Digikey	Bulk	1	$ 14.00

General part information

RF Network Card 2.412GHz ~ 2.4835GHz, 5.15GHz ~ 5.825GHz 802.11 b/g/-c USB
