PE44634
ActivePasternack
TNC MALE CONNECTOR CRIMP/SOLDER
PE44634
ActivePasternack
TNC MALE CONNECTOR CRIMP/SOLDER
Description
General part information
PE44634

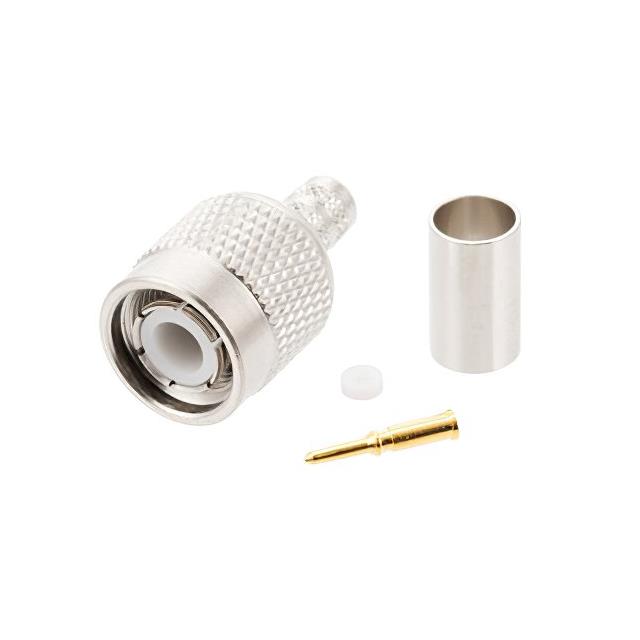

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44634 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR240, Belden 7808A, RG-8X |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyoxymethylene (POM) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
