FMCA2957-36
ActiveFairview Microwave
CBL ASSY SMAJACK-SMAJACK 36
FMCA2957-36
ActiveFairview Microwave
CBL ASSY SMAJACK-SMAJACK 36
Description
General part information
FMCA2957-36

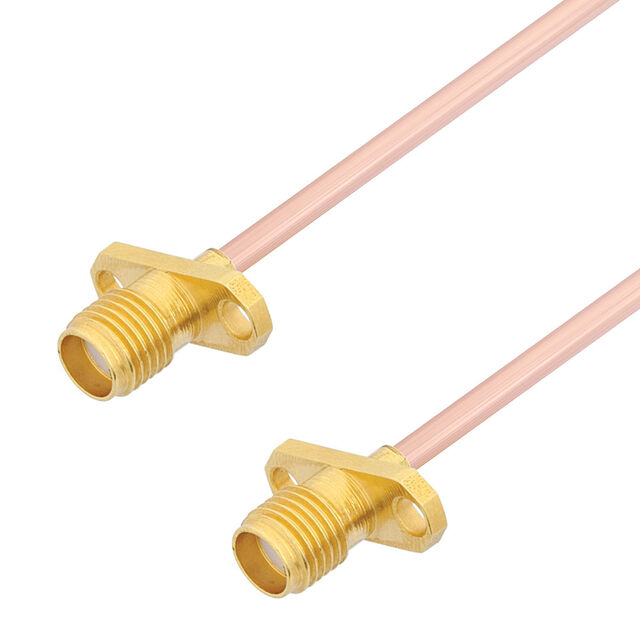

Cable Assembly Coaxial SMA to SMA Hand Formable .047 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2957-36 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Flange |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Feature | Flange |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
