Part	Operating Temperature (Min)	Operating Temperature (Max)	Circuit	Illumination Type	Color	Ingress Protection	Type	Mounting Type	Actuator Marking	Quick Connect Size (0.110")	Termination Style	Color - Actuator/Cap	Current Rating	Voltage Rating - AC	Switch Function	Illumination Voltage (Nominal)	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Voltage Rating - DC	Actuator Type	Mechanical Life (Cycles)	Electrical Life (Cycles)	Compatible Series	Illumination	Requires	For Use With/Related Products	Accessory Type
Omron Automation and Safety A3SJ-90A1-24SA	-10 °C	50 °C	SPDT	LED	Blue	IP00	Illuminated Standard	Panel Mount Snap-In	No Marking	0.11 in	Quick Connect	Blue	2 A 3 A	125 V	On-Mom	24 V	16.2 mm	Rectangular	22.4 mm	30 V	Button Rectangular	1000000 Cycles	100000 Cycles
Omron Automation and Safety A3SJ-90A1-24SR	-10 °C	50 °C	SPDT	LED	Red	IP00	Illuminated Standard	Panel Mount Snap-In	No Marking	0.11 in	Quick Connect	Red	2 A 3 A	125 V	On-Mom	24 V	16.2 mm	Rectangular	22.4 mm	30 V	Button Rectangular	1000000 Cycles	100000 Cycles
Omron Automation and Safety A3SJ-90B1-24SW	-10 °C	50 °C	SPDT	LED	Amber	IP00	Illuminated Standard	Panel Mount Snap-In	No Marking	0.11 in	Quick Connect	White	2 A 3 A	125 V	On-On	24 V	16.2 mm	Rectangular	22.4 mm	30 V	Button Rectangular	100000 Cycles	100000 Cycles
Omron Automation and Safety A3SJ-5805																					Pushbutton Rectangular			A3S Omron	Yellow	Contact Block(s) Illumination Source
Omron Automation and Safety A3SJ-90B1-24SG	-10 °C	50 °C	SPDT	LED	Green	IP00	Illuminated Standard	Panel Mount Snap-In	No Marking	0.11 in	Quick Connect	Green	2 A 3 A	125 V	On-On	24 V	16.2 mm	Rectangular	22.4 mm	30 V	Button Rectangular	100000 Cycles	100000 Cycles
Omron Automation and Safety A3SJ-2308																											A3S Series	Plunger
Omron Automation and Safety A3SJ-90E1-24EG	-10 °C	50 °C	SPDT	LED	Green	IP00	Illuminated Standard	Panel Mount Snap-In	No Marking	0.11 in	Quick Connect	Green	100 mA	125 V	On-Mom	24 V	16.2 mm	Rectangular	22.4 mm	30 V	Button Rectangular	1000000 Cycles	100000 Cycles
Omron Automation and Safety A3SJ-4004
Omron Automation and Safety A3SJ-5802																					Pushbutton Rectangular			A3S Omron	Red	Contact Block(s) Illumination Source
Omron Automation and Safety A3SJ-4106

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

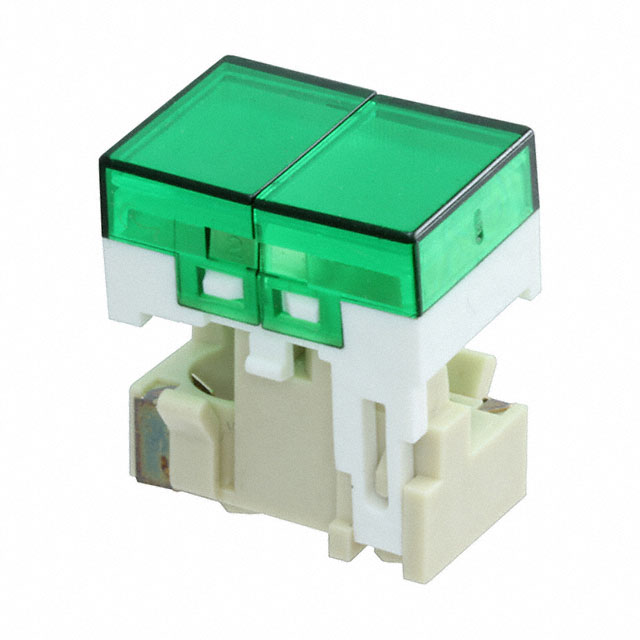

A3SJ-5923NC | Datasheet
