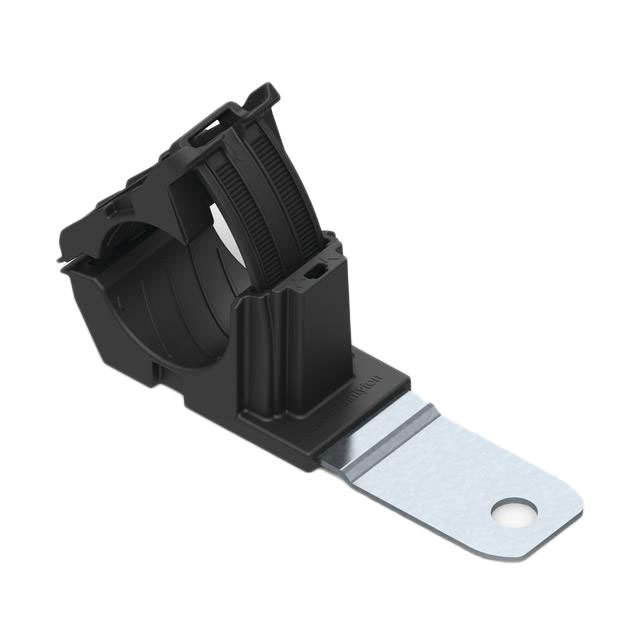

Specification	151-01982

Bundle Center to Mounting Center	3.32 in
Color	Black
Features	UV Resistant, Impact Resistant, Heat Stabilized
Length	4.921 in
Material	6, Steel, Polyamide (PA66), Nylon 6
Material Flammability Rating	UL94 HB
Mounting Type	Fastener
Opening Size (Max)	1.417 in
Opening Size (Min)	0.764 in
Panel Hole Size	0.51 in
Screw Size	M12
Type	P-Type, Clamp
Type Attributes	Ratchet, Ribbed
Type Attributes Angle	180 °
Width	1.374 in

151-01 Series

...

Part	Type	Opening Size (Min)	Opening Size (Max)	Color	Length	Type Attributes Angle	Type Attributes	Material	Material Flammability Rating	Features	Width	Mounting Type	Panel Hole Size
HELLERMANNTYTON 151-01428	Clamp P-Type	0.21 in	0.54 in	Black	2.803 in	30 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.327 in
HELLERMANNTYTON 151-01935	Clamp P-Type	0.244 in	0.539 in	Black	2.709 in	90 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01644	Clamp P-Type	0.21 in	0.54 in	Black	3.811 in	90 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01923	Clamp P-Type	0.244 in	0.539 in	Black	3.421 in	15 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01670	Clamp P-Type	0.21 in	0.54 in	Black	3.272 in	180 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	Fastener	0.256 in
HELLERMANNTYTON 151-01924	Clamp P-Type	0.244 in	0.539 in	Black	3.421 in	15 °	Ratchet Ribbed	6 Nylon 6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	Fastener	0.327 in
