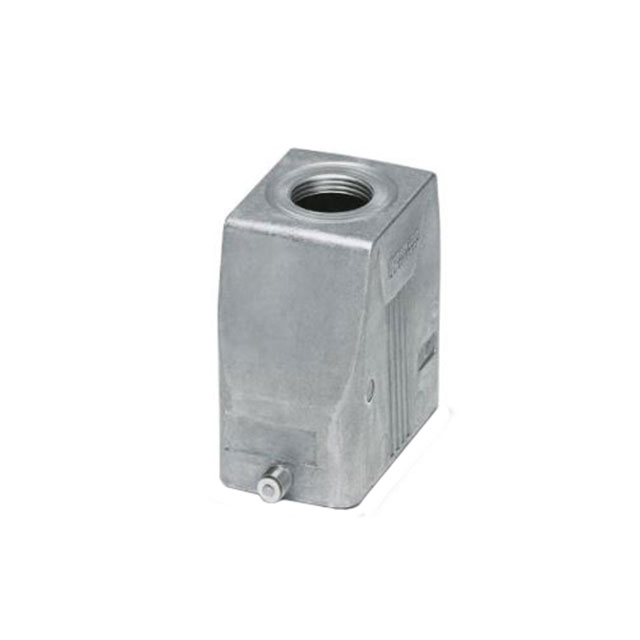

Specification	1412604

Connector Type	Hood
Features	Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP69K
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B10
Size / Dimension Height	2.835 in
Size / Dimension Length	2.874 in
Size / Dimension Width	1.732 in
Style	Top Entry
Thread Size	M25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
