PM0S0SM6E
ActiveTE Connectivity AMP Connectors

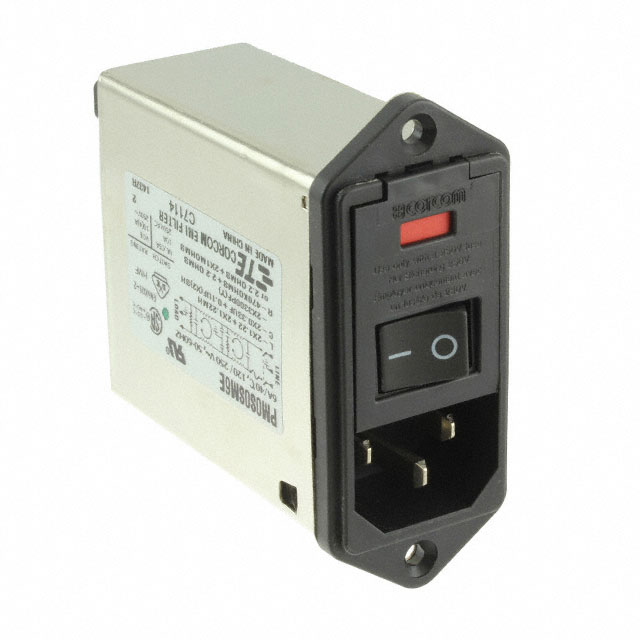

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM0S0SM6E
ActiveTE Connectivity AMP Connectors
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PM0S0SM6E | PM0S Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A | 3 - 10 A |
| Current Rating - Filter | 6 A | 3 - 10 A |
| Features | Conversion Clip, Shielded | Conversion Clip, Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 28.45 mm | 28.45 mm |
| Panel Cutout Dimensions [y] | 55.91 mm | 55.91 mm |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.187 " | 0.187 " |
| Termination | 4.7 mm | 4.7 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 120 VAC | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.91 | |
| 18 | $ 43.68 | |||
| 27 | $ 40.60 | |||
| 54 | $ 38.36 | |||
| 108 | $ 37.52 | |||
| 252 | $ 37.24 | |||
PM0S Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Filter Type | Accomodates a Fuse | Features | Switch Features | Termination | Termination | Termination | Fuse Holder, Drawer | Connector Type | Approval Agency | Connector Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - Appliance Inlet [Max] | Voltage Rating - Appliance Inlet [Min] | Current Rating - Filter | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors PM0S0SMXE | 10 A | Filtered (EMI, RFI) - Commercial | Conversion Clip, Shielded | Switch On-Off | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder | Receptacle, Male Blades - Module | CSA, UL, VDE | IEC 320-C14 | 55.91 mm | 28.45 mm | 250 VAC | 120 VAC | 10 A | Flange, Panel Mount | |
TE Connectivity AMP Connectors PM0S0SM3E | 3 A | Filtered (EMI, RFI) - Commercial | Conversion Clip, Shielded | Switch On-Off | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder | Receptacle, Male Blades - Module | CSA, UL, VDE | IEC 320-C14 | 55.91 mm | 28.45 mm | 250 VAC | 120 VAC | 3 A | Flange, Panel Mount | |
TE Connectivity AMP Connectors PM0S0SM6E | 6 A | Filtered (EMI, RFI) - Commercial | Conversion Clip, Shielded | Switch On-Off | 0.187 " | 4.7 mm | Quick Connect | Fuse Holder | Receptacle, Male Blades - Module | CSA, UL, VDE | IEC 320-C14 | 55.91 mm | 28.45 mm | 250 VAC | 120 VAC | 6 A | Flange, Panel Mount |
Description
General part information
PM0S Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
