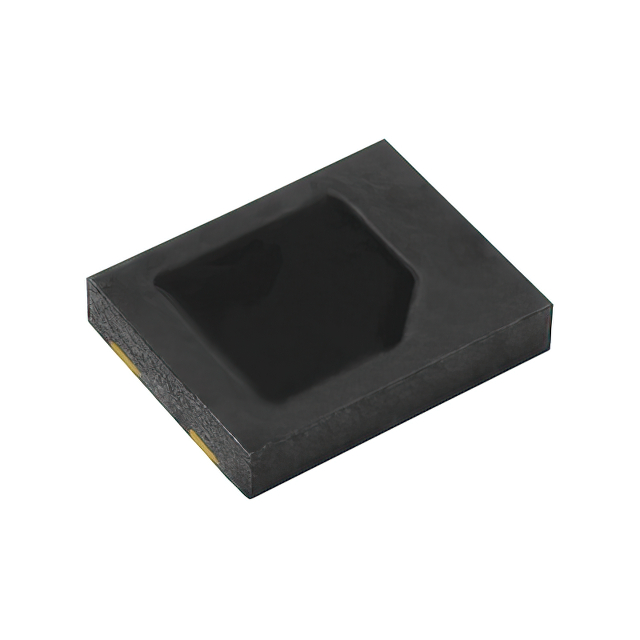

VEMD5160X01-GS15
ActiveVishay Semiconductor Opto Division
SENSOR PHOTODIODE 840NM 4SMD
VEMD5160X01-GS15
ActiveVishay Semiconductor Opto Division
SENSOR PHOTODIODE 840NM 4SMD
Description
General part information
VEMD5160X01-GS15
Photodiode 840nm 30ns 130° 4-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | VEMD5160X01-GS15 |
|---|---|
| Active Area | 7.5 mm² |
| Current - Dark (Typ) | 200 pA |
| Diode Type | Pin |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Response Time | 30 ns |
| Spectral Range (Maximum) | 1070 nm |
| Spectral Range (Minimum) | 700 nm |
| Viewing Angle | 130 ° |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Wavelength | 840 nm |
