BK/ETF-6.3
ObsoleteEaton - Electronics Division
FUSE BOARD MNT 6.3A 277VAC RAD
BK/ETF-6.3
ObsoleteEaton - Electronics Division
FUSE BOARD MNT 6.3A 277VAC RAD
Description
General part information
BK/ETF-6.3

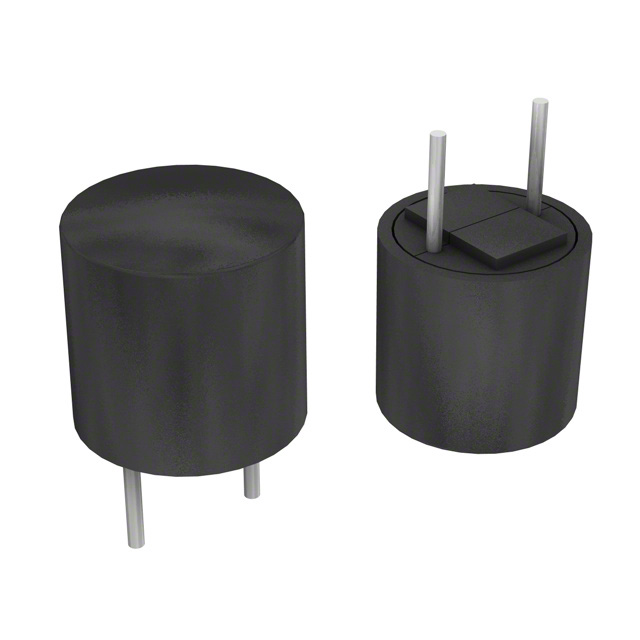

6.3 A 277 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/ETF-6.3 |
|---|---|
| Approval Agency | UL, SEMKO |
| Breaking Capacity | 100 A |
| Current Rating | 6.3 A |
| DC Cold Resistance | 0.008 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 230 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Vertical, Radial |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.329 in |
| Size / Dimension Height | 0.303 in |
| Voltage Rating - AC | 277 V |
