Description
General part information
POE-ICO-SPL

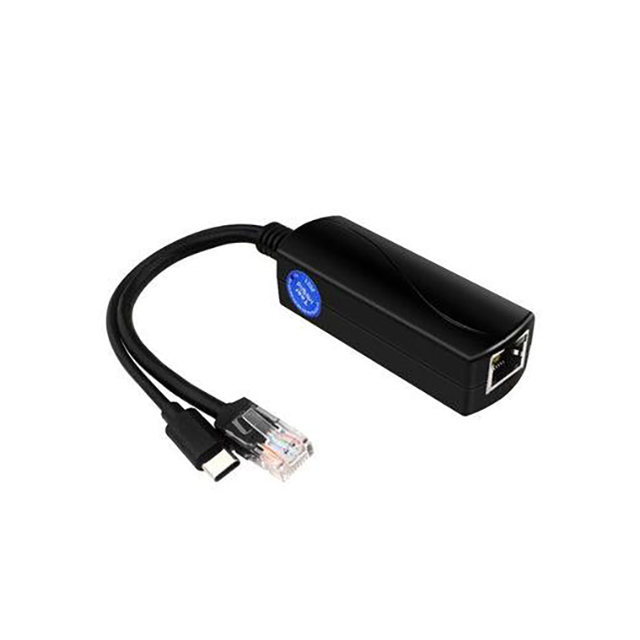

5V Power Over Ethernet (POE) 1 Port Splitter 10/100 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-ICO-SPL |
|---|---|
| Compliance | IEEE802.3af |
| Current - Output | 2.4 A |
| Data Rate (Option 1) | 10 Mbps |
| Data Rate (Option 2) | 100 Mbps |
| Input Connector | RJ45 (Data, Power) |
| Maximum Data Rate | 100 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Output Connector | RJ45 (Data), USB |
| Power (Watts) - Per Port | 12 W |
| Type | Splitter |
| Typical Data Rate | 0 Gbps |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 37 V |
| Voltage - Output | 5 VDC |
