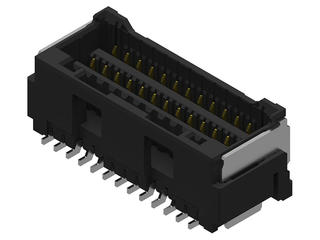

Specification	2132272411

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.94 µin
Contact Type	Forked
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Solder Retention, Pick and Place
Insulation Color	Black
Insulation Height	0.346 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.059 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	100 VAC
Voltage Rating (Type)	AC, DC

213227 Series

Part	Insulation Height	Fastening Type	Number of Rows	Current Rating	Number of Positions	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Contact Type	Style	Mounting Type	Contact Finish Thickness - Mating	Pitch - Mating	Contact Finish - Mating	Features	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Termination	Contact Finish Thickness - Post	Contact Material	Insulation Material
Molex 2132271631	0.346 in	Latch Holder	2	Varies by Wire Gauge	16	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	15 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Black	Solder
Molex 2132273430	0.346 in	Latch Holder	2	Varies by Wire Gauge	34	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	15 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Natural	Solder

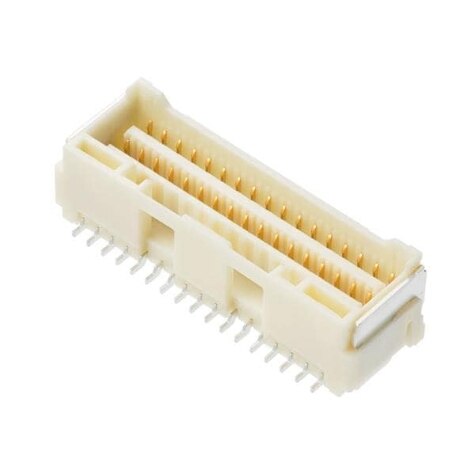

Molex 2132272830	0.346 in	Latch Holder	2	Varies by Wire Gauge	28	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	15 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Natural	Solder
Molex 2132273011	0.346 in	Latch Holder	2	Varies by Wire Gauge	30	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	3.94 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Black	Solder
Molex 2132272811	0.346 in	Latch Holder	2	Varies by Wire Gauge	28	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	3.94 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Black	Solder	39.4 µin	Copper Alloy	Nylon Polyamide (PA)

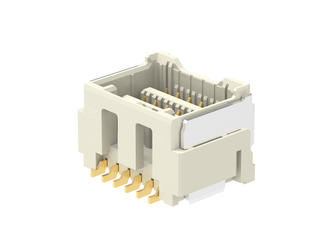

Molex 2132271270	0.346 in	Latch Holder	2	Varies by Wire Gauge	12	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	30 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Natural	Solder
Molex 2132271010	0.346 in	Latch Holder	2	Varies by Wire Gauge	10	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	3.94 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Natural	Solder
Molex 2132271031	0.346 in	Latch Holder	2	Varies by Wire Gauge	10	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	15 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Black	Solder
Molex 2132273470	0.346 in	Latch Holder	2	Varies by Wire Gauge	34	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	30 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Natural	Solder

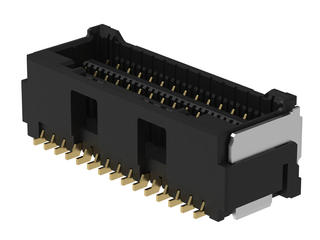

Molex 2132273071	0.346 in	Latch Holder	2	Varies by Wire Gauge	30	Receptacle	-40 °C	105 °C	100 VAC	AC DC	Forked	Board Cable/Wire	Surface Mount	30 µin	0.059 in	Gold	Pick and Place Solder Retention	UL94 V-0	All	Tin	Black	Solder	39.4 µin	Copper Alloy	Nylon Polyamide (PA)
