HT 1/2 R-B

Active

MM Newman Corporation

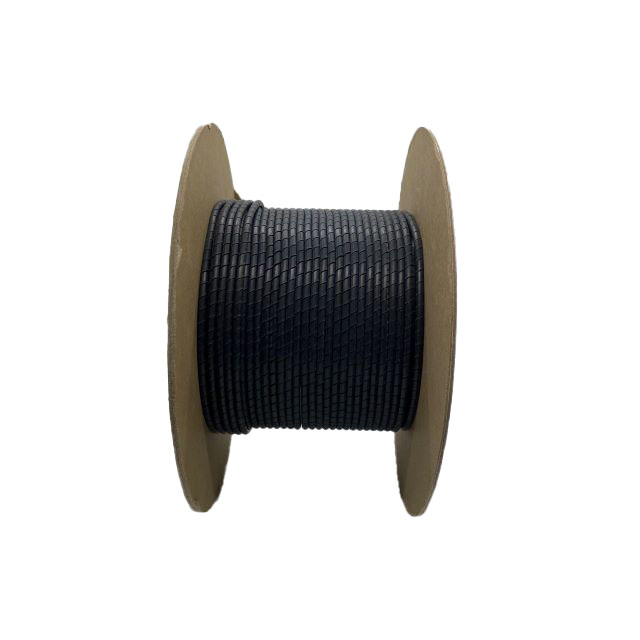

SPIRAL WRAP 0.376" X 100' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 1/2 R-B

Active

MM Newman Corporation

SPIRAL WRAP 0.376" X 100' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 366.02
		10	$ 305.23

Description

General part information

HT 1/2 Series

Spiral Wrap 0.500" (12.70mm) X 100' (30.48m) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 1/2 R-B	HT 1/2 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Black	Black, Natural, White
Diameter - Inside, Expanded	-	76.2 mm
Diameter - Inside, Expanded [diameter]	4 in	3 - 4 in
Diameter - Inside, Expanded [diameter]	101.6 mm	101.6 mm
Diameter - Inside, Non-Expanded	-	0.43 - 0.438 in
Diameter - Inside, Non-Expanded [diameter]	0.376 in	0.376 - 11.13 in
Diameter - Inside, Non-Expanded [diameter]	9.55 mm	9.55 mm
Diameter - Outside, Non-Expanded [diameter]	0.5 in	0.5 in
Diameter - Outside, Non-Expanded [diameter]	12.7 mm	12.7 mm
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	Fire Resistant	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Polytetrafluoroethylene (PTFE), Nylon
Material Flammability Rating	UL94 V-2, UL1441	UL94 V-2, UL1441, UL94 V-0, UL VW-1
Operating Temperature [Max]	80 C	80 - 260 C
Operating Temperature [Min]	-20 C	-268 - -20 C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	1.57 mm	1.57 mm
Wall Thickness	0.062 in	0.062 in
Wall Thickness	-	0.03 - 0.035 in
Wall Thickness	-	0.76 - 0.89 mm

HT 1/2 Series

SPIRAL WRAP 0.376" X 100' BLACK

Part	Type Attributes	Abrasion Protection	Features	Length	Length	Wall Thickness	Wall Thickness	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material Flammability Rating	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type	Material	Heat Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Expanded	Wall Thickness [custom]	Wall Thickness [custom]	Environment Protection	Diameter - Inside, Non-Expanded [diameter]
MM Newman Corporation HT 1/2 R-B	Harness	Abrasion Resistant	Chemical Resistant, Solvent Resistant	100 ft	30.48 m	1.57 mm	0.062 in	4 in	101.6 mm	Black	0.376 in	9.55 mm	UL94 V-2, UL1441	0.5 in	12.7 mm	Spiral Wrap	Polyethylene (PE)	Fire Resistant	-20 C	80 C
MM Newman Corporation HT 1/2 T	Harness	Abrasion Resistant	Chemical Resistant, Solvent Resistant	100 ft	30.48 m			3 in		Natural	11.13 mm		UL VW-1, UL94 V-0	0.5 in	12.7 mm	Spiral Wrap	Polytetrafluoroethylene (PTFE)	Fire Resistant	-268 °C	260 ░C	76.2 mm	0.03 in	0.76 mm	UV Resistant	0.438 in
MM Newman Corporation HT 1/2 UR	Harness	Abrasion Resistant	Chemical Resistant, Solvent Resistant	100 ft	30.48 m	1.57 mm	0.062 in	4 in	101.6 mm	Black	0.376 in	9.55 mm		0.5 in	12.7 mm	Spiral Wrap	Polyethylene (PE)		-60 °C	88 °C
MM Newman Corporation HT 1/2 R	Harness	Abrasion Resistant	Chemical Resistant, Solvent Resistant	100 ft	30.48 m	1.57 mm	0.062 in	4 in	101.6 mm	White	0.376 in	9.55 mm	UL94 V-2, UL1441	0.5 in	12.7 mm	Spiral Wrap	Polyethylene (PE)	Fire Resistant	-20 C	80 C
MM Newman Corporation HT 1/2 N	Harness	Abrasion Resistant	Chemical Resistant, Self Extinguishing, Solvent Resistant	100 ft	30.48 m			4 in	101.6 mm	Natural	10.92 mm			0.5 in	12.7 mm	Spiral Wrap	Nylon		-40 °C	121 °C		0.035 in	0.89 mm		0.43 in
