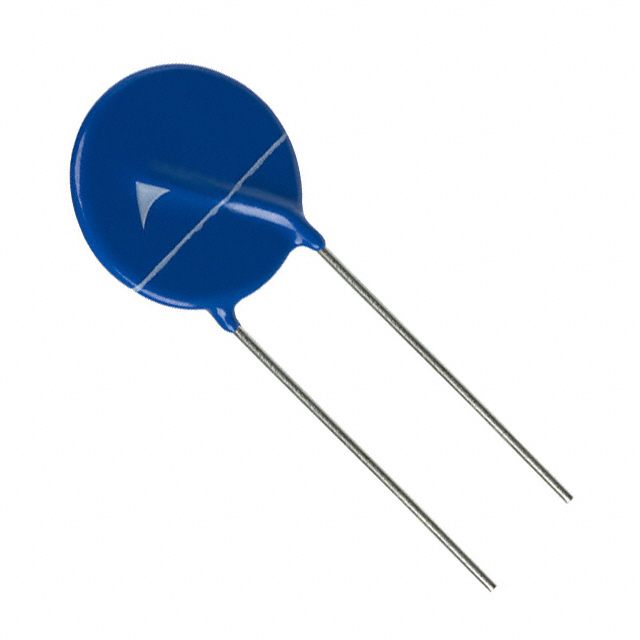

B72220P3171K101

Active

EPCOS - TDK Electronics

VARISTOR 270V 12KA DISC 20MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 270V 12KA DISC 20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

270 V 12 kA Varistor 1 Circuit Through Hole Disc 20mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 820V 10KA DISC 20MM

Part	Energy	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Varistor Voltage (Max) [Max]	Package / Case	Number of Circuits	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Maximum DC Volts	Capacitance @ Frequency	Current - Surge	Maximum AC Volts [Max]	Maximum DC Volts [Max]	Maximum AC Volts
EPCOS - TDK Electronics B72220P3511K101	445 J	105 °C	-40 °C	Through Hole	902 V	Disc 20mm	1	738 V	820 V	670 V	600 pF	10 kA	510 V
EPCOS - TDK Electronics B72220P3351K101	335 J	105 °C	-40 °C	Through Hole	616 V	Disc 20mm	1	504 V	560 V		900 pF	12 kA	350 V	460 V
EPCOS - TDK Electronics B72220P3551K101	490 J	105 °C	-40 °C	Through Hole	1.001 kV	Disc 23mm	1	819 V	910 V			10 kA	550 V	745 V
EPCOS - TDK Electronics B72220P3681K101	595 J	105 °C	-40 °C	Through Hole	1.21 kV	Disc 20mm	1	990 V	1.1 kV		450 pF	10 kA	680 V	895 V
EPCOS - TDK Electronics B72220P3421K101		105 °C	-40 °C	Through Hole	748 V	Disc 20mm	1	612 V	680 V		730 pF	12 kA	420 V	560 V
EPCOS - TDK Electronics B72220P3321K101	330 J	105 °C	-40 °C	Through Hole	561 V	Disc 20mm	1	459 V	510 V		1000 pF	12 kA	320 V	420 V
EPCOS - TDK Electronics B72220P3461K101	445 J	105 °C	-40 °C	Through Hole	825 V	Disc 20mm	1	675 V	750 V		660 pF	12 kA	460 V	615 V
EPCOS - TDK Electronics B72220P3621K101	540 J	105 °C	-40 °C	Through Hole	1.1 kV	Disc 20mm	1	900 V	1 kV		500 pF	10 kA	625 V	825 V
EPCOS - TDK Electronics B72220P3301K101	305 J	105 °C	-40 °C	Through Hole	517 V	Disc 20mm	1	423 V	470 V		1050 pF	12 kA		385 V	300 V
EPCOS - TDK Electronics B72220P3271K101	280 J	105 °C	-40 °C	Through Hole	473 V	Disc 20mm	1	387 V	430 V		1150 pF	12 kA	275 V	350 V
