TDR10P10CS-L
ActivePasternack
PLUGRJ50 10X10 SHLD BAG/100
TDR10P10CS-L
ActivePasternack
PLUGRJ50 10X10 SHLD BAG/100
Description
General part information
TDR10P10CS-L

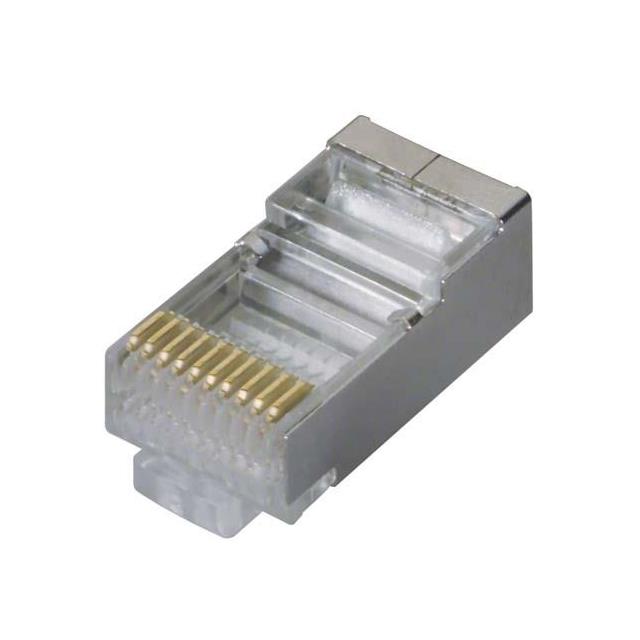

Plug Modular Connector 10p10c (RJ50) Position Shielded IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TDR10P10CS-L |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Clear |
| Connector Type | RJ50, Plug |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| Length | 0.898 in |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
