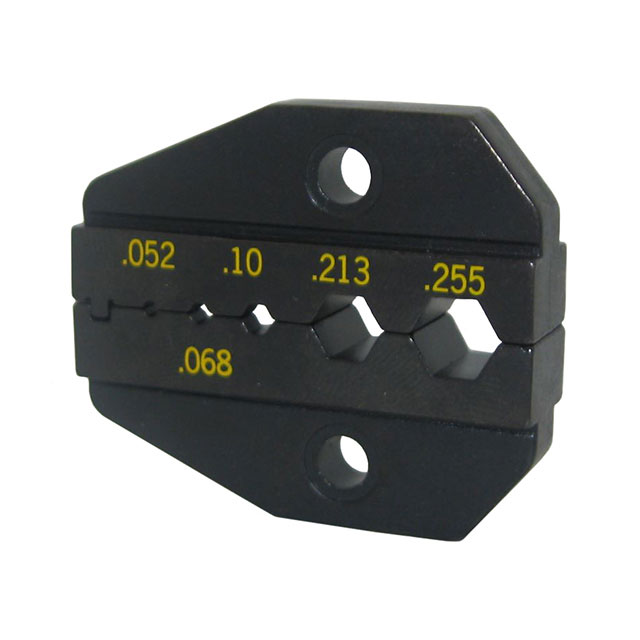

Specification	47-20025

Cable Group	RG-58, 59
Compatible Tools	47-10000
For Use With/Related Products	TNC, Coaxial, SMA, N, RF - BNC
Specification Dimension	0.255 in, 0.213 in, 0.1 in, 0.068 in, 0.052 in
Specifications	Hex, 0.255", 0.068", Hex - 0.052", 0.100", 0.213"
Tool Type	Die Set

47-20 Series

Part	Cable Group	Compatible Tools	Tool Type	Specifications	Specification Dimension	Specifications Length	For Use With/Related Products
McGill Microwave Systems 47-20000	141 142 223 303 400 58 59 62 8X LMR195 LMR200 LMR240 RG-55	47-10000	Die Set	0.213" 0.255" Hex Hex - 0.068"	0.068 in 0.213 in 0.255 in	0.213 in	Coaxial RF Connectors
McGill Microwave Systems 47-20030	1694A Belden 1505A	47-10000	Die Set	0.068" 0.255" 0.278" Hex Hex - 0.042"	0.042 in 0.068 in 0.255 in 0.278 in	0.042 in	Coaxial RF Connectors
McGill Microwave Systems 47-20001	59 Belden 8281 RG-6	47-10000	Die Set	0.068" 0.255" 0.324" Hex - 0.042"			Coaxial RF Connectors
McGill Microwave Systems 47-20256			Die Set	0.075" 0.429" Hex Hex - 0.075"	0.075 in 0.429 in	0.075 in	Coaxial RF Connectors
McGill Microwave Systems 47-20253			Die Set	0.068" 0.178" 0.255" 0.278" Hex - 0.041"			Coaxial RF Connectors
McGill Microwave Systems 47-20024	174 179 187 188 316 Belden 8218 RG-6	47-10000	Die Set	0.178" 0.324" Hex - 0.068"			Coaxial RF Connectors
McGill Microwave Systems 47-20004	178 179 180 187 188 195 196 316 LMR100 RG-174	47-10000	Die Set	0.128" 0.178" Hex - 0.068"			Coaxial RF Connectors
McGill Microwave Systems 47-20254			Die Set	0.178" 0.187" Hex Hex - 0.042"	0.042 in 0.178 in 0.187 in	0.042 in	Coaxial RF Connectors
McGill Microwave Systems 47-20250		47-10000	Die Set	0.068" 0.128" 0.178" Hex Hex - 0.042"	0.042 in 0.068 in 0.128 in 0.178 in		Coaxial RF - BNC TNC
McGill Microwave Systems 47-20028	174 179 187 188 316 62 RG-59	47-10000	Die Set	0.068" 0.178" 0.255" Hex Hex - 0.052"	0.052 in 0.068 in 0.178 in 0.255 in	0.068 in	Coaxial RF Connectors
