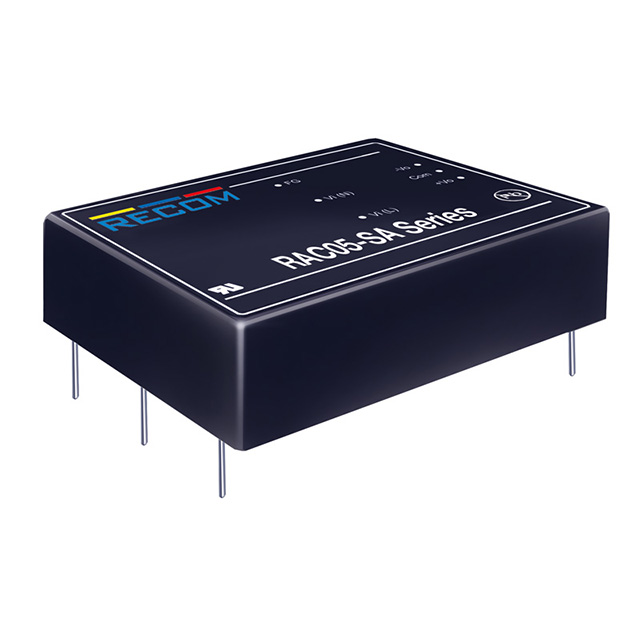

RAC05-12DA
ObsoleteRecom Power
AC/DC CONVERTER +/-12V 5W
RAC05-12DA
ObsoleteRecom Power
AC/DC CONVERTER +/-12V 5W
Description
General part information
RAC05-12DA
Enclosed AC DC Converters 2 Output 12V 200mA, 200mA 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC05-12DA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) | 200 mA |
| Efficiency | 67 % |
| Features | SCP |
| Line Regulation | 0.3 % |
| Load Regulation (Percent) | 0.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.82 in |
| Size / Dimension Length | 2.17 in |
| Size / Dimension Width | 1.77 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 12 V |
| Weight | 0.177 lb |
