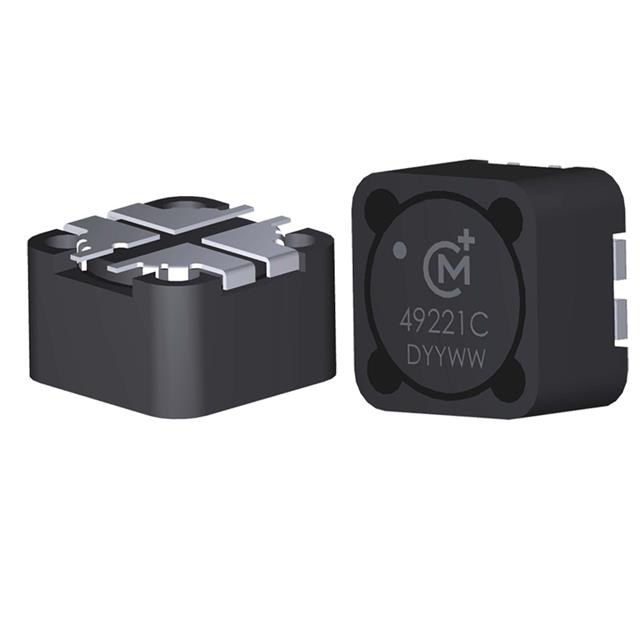

Specification	492R2C

Current Rating	9.5 A
DC Resistance (DCR) (Max)	12.6 mOhm
Height - Seated (Max)	0.315 in
Inductance	2.2 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Lead, 4 Leads
Package Name	Nonstandard
Shielding	Shielded
Size / Dimension Length	0.472 in
Size / Dimension Width	0.472 in
Type	Wirewound

49 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Package Leads	Package Name	Shielding	Current Rating	Mounting Type	Frequency - Self Resonant	Height - Seated (Max)	DC Resistance (DCR) (Max)	Size / Dimension Width	Size / Dimension Length	Type	Inductance	Inductance Frequency - Test	Tolerance	Q
Murata Electronics 49100SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	5.1 A	Surface Mount	19 MHz	0.315 in	21 mOhm	0.48 in	0.48 in	Wirewound	10 µH	10 kHz	20 %	43
Murata Electronics 49680SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	2 A	Surface Mount	7 MHz	0.315 in	100 mOhm 143 mOhm	0.48 in	0.48 in	Wirewound	68 µH	10 kHz	20 %	47
Murata Electronics 49471SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	0.75 A	Surface Mount	4 MHz	0.315 in	810 mOhm	0.48 in	0.48 in	Wirewound	0.47 mH	10 kHz	20 %	37
Murata Electronics 49102SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	0.5 A	Surface Mount	3 MHz	0.315 in	1.5 Ohm	0.48 in	0.48 in	Wirewound	1 mH	10 kHz	20 %	26
Murata Electronics 49220SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	3.1 A	Surface Mount	12 MHz	0.315 in	42 mOhm	0.48 in	0.48 in	Wirewound	22 µH	10 kHz	20 %	46
Murata Electronics 49221C	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	950 mA	Surface Mount		0.315 in	805 mOhm	0.472 in	0.472 in	Wirewound	220 µH	10 kHz
Murata Electronics 49221SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	1.1 A	Surface Mount	4 MHz	0.315 in	380 mOhm	0.48 in	0.48 in	Wirewound	220 µH	10 kHz	20 %	36
Murata Electronics 492R2SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	9.8 A	Surface Mount	48 MHz	0.315 in	8 mOhm	0.48 in	0.48 in	Wirewound	2.2 µH	10 kHz	30 %	45
Murata Electronics 494R7SC	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	7.7 A	Surface Mount	32 MHz	0.315 in	12 mOhm	0.48 in	0.48 in	Wirewound	4.7 µH	10 kHz	30 %	42
Murata Electronics 496R8C	-40 °C	85 °C	4 Lead 4 Leads	Nonstandard	Shielded	5.4 A	Surface Mount		0.315 in	27 mOhm	0.472 in	0.472 in	Wirewound	6.8 µH	10 kHz
