HL10006Z5K000JJ
ObsoleteVishay Dale
RES CHAS MNT 5K OHM 5% 100W
HL10006Z5K000JJ
ObsoleteVishay Dale
RES CHAS MNT 5K OHM 5% 100W
Description
General part information
HL10006Z5K000JJ

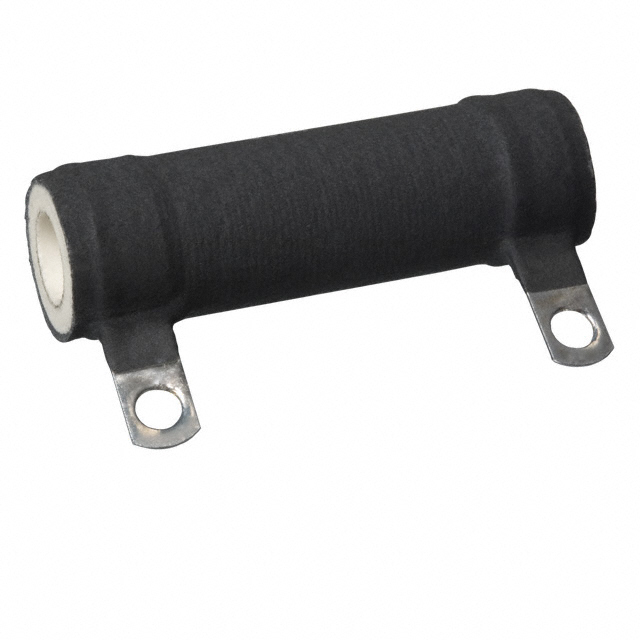

5 kOhms ±5% 100W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | HL10006Z5K000JJ |
|---|---|
| Coating | Silicone Coated |
| Composition | Wirewound |
| Features | Moisture Resistant |
| Housing Type | Silicone Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Tubular, Radial |
| Power (Watts) | 100 W |
| Resistance | 5 kOhm |
| Size / Dimension Diameter | 0.75 in |
| Size / Dimension Length | 6.5 in |
| Temperature Coefficient | 30 ppm/¯C |
| Tolerance | 5 % |
