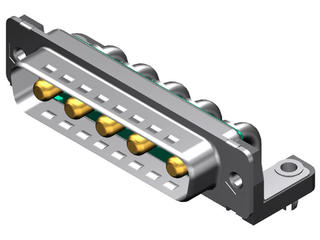

1731071079 - FCT Mixed Layout D-Sub Connector, Male, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell with Dimples, 14.60mm Riveted Plastic Bracket and #4-40 Clinch Nut, Grounding Bracket, 5 Circuits Loaded (High Power), Green Insulator

1731071079

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, MALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL WITH DIMPLES, 14.60MM RIVETED PLASTIC BRACKET AND #4-40 CLINCH NUT, GROUNDING BRACKET, 5 CIRCUITS LOADED (HIGH POWER), GREEN INSULATOR

Find alt
1731071079 - FCT Mixed Layout D-Sub Connector, Male, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell with Dimples, 14.60mm Riveted Plastic Bracket and #4-40 Clinch Nut, Grounding Bracket, 5 Circuits Loaded (High Power), Green Insulator

1731071079

Active
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, MALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL WITH DIMPLES, 14.60MM RIVETED PLASTIC BRACKET AND #4-40 CLINCH NUT, GROUNDING BRACKET, 5 CIRCUITS LOADED (HIGH POWER), GREEN INSULATOR

Find alt

Description

General part information

173107 Series

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH

Technical Specifications

Parameters and characteristics for this part

Specification1731071079
Connector LayoutDB, B
Connector StyleCombo, D-Sub
Connector TypeMale Pins, Plug
Contact FinishGold
Contact TypePower
Current Rating5 A
FeaturesGrounding Indents
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions5
Number of Rows1
Part Code5W5
Position TypesPower
Primary MaterialMetal
Shell MaterialSteel
Shell Size3
TerminationSolder Cup
