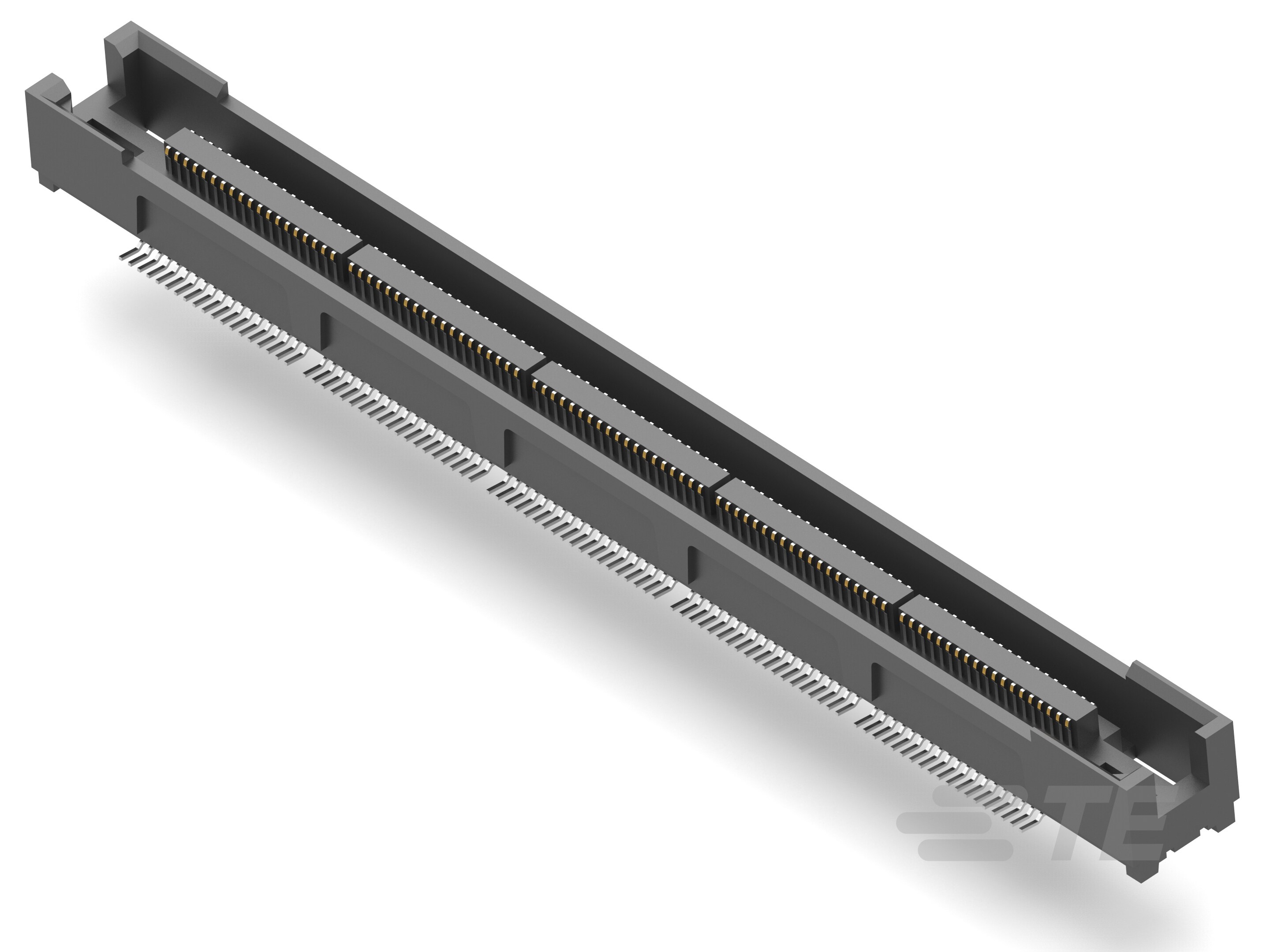

5767054-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 190P SMD PALLAD-NICKEL
5767054-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 190P SMD PALLAD-NICKEL
Description
General part information
5767054-5
PCB Mount Receptacle, Vertical, Board-to-Board, 190 Position, .64 mm [.025 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 5767054-5 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Palladium-Nickel |
| Contact Finish Thickness | 5 µin |
| Features | Ground Bus (Plane), Board Guide |
| Height Above Board | 0.236 in |
| Mated Stacking Height Options | 6.6mm, 18.75mm, 20mm, 10.92mm, 17.96mm, 12.57mm, 9mm, 22.86mm |
| Mounting Type | Surface Mount |
| Number of Positions | 190 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
