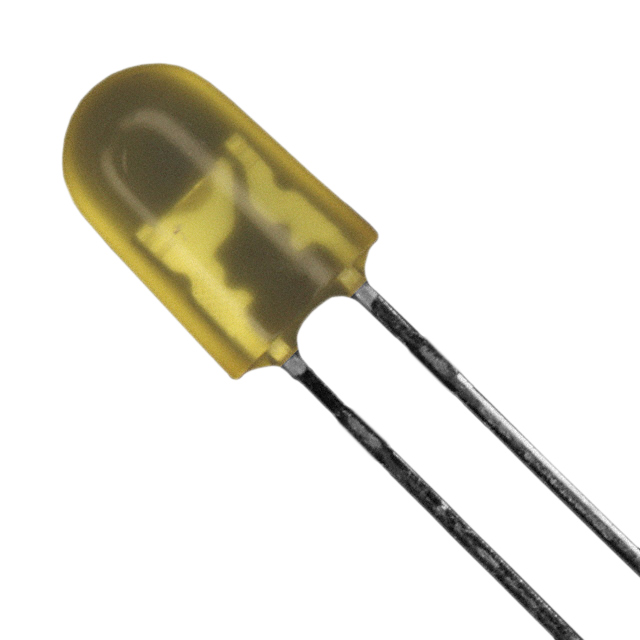

Specification	C566C-AFE-CU0W0251

Color	Amber
Configuration	Standard
Current - Test	20 mA
Height (Max)	7.8 mm
Lens Color	Amber
Lens Length	5.2 mm
Lens Style	Oval, Domed Top
Lens Transparency	Diffused
Lens Width	4.6 mm
Millicandela Rating	2850 mcd
Mounting Type	Through Hole
Package / Case	Radial
Package Name	5mm Oval
Supplier Device Package Shape	Oval
Supplier Device Package Size	5 mm
Viewing Angle (Horizontal)	70 °
Viewing Angle (Vertical)	35 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	591 nm

C566C Series

Part	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength - Dominant	Package / Case	Supplier Device Package Size	Supplier Device Package Shape	Package Name	Millicandela Rating	Viewing Angle (Vertical)	Viewing Angle (Horizontal)	Lens Transparency	Lens Width	Lens Length	Height (Max)	Lens Style	Configuration	Lens Color
CreeLED, Inc. C566C-BFE-CS0W0451	Blue	20 mA	3.4 V	Through Hole	470 nm	Radial	5 mm	Oval	5mm Oval	2475 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Blue
CreeLED, Inc. C566C-RFS-CU0W0BB2	Red	20 mA	2.1 V	Through Hole	622 nm	Radial	5 mm	Oval	5mm Oval	2850 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	11.9 mm	Domed Top Oval	Standard	Red
CreeLED, Inc. C566C-BFE-CT0V0351	Blue	20 mA	3.4 V	Through Hole	468 nm	Radial	5 mm	Oval	5mm Oval	2050 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Blue
CreeLED, Inc. C566C-RFN-CU0V0BB1	Red	20 mA	2.1 V	Through Hole	621 nm	Radial	5 mm	Oval	5mm Oval	2260 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Red
CreeLED, Inc. C566C-RFS-CU0W0BB1	Red	20 mA	2.1 V	Through Hole	622 nm	Radial	5 mm	Oval	5mm Oval	2850 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	11.9 mm	Domed Top Oval	Standard	Red
CreeLED, Inc. C566C-GFN-CX0Y0782	Green	20 mA	3.4 V	Through Hole	525 nm	Radial	5 mm	Oval	5mm Oval	6190 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Green
CreeLED, Inc. C566C-RFE-CU0W0BB1	Red	20 mA	2.1 V	Through Hole	622 nm	Radial	5 mm	Oval	5mm Oval	2850 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Red
CreeLED, Inc. C566C-GFE-CX0Y0891	Green	20 mA	3.4 V	Through Hole	527 nm	Radial	5 mm	Round	5mm Round	6190 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	7.8 mm	Domed Top Oval	Standard	Green

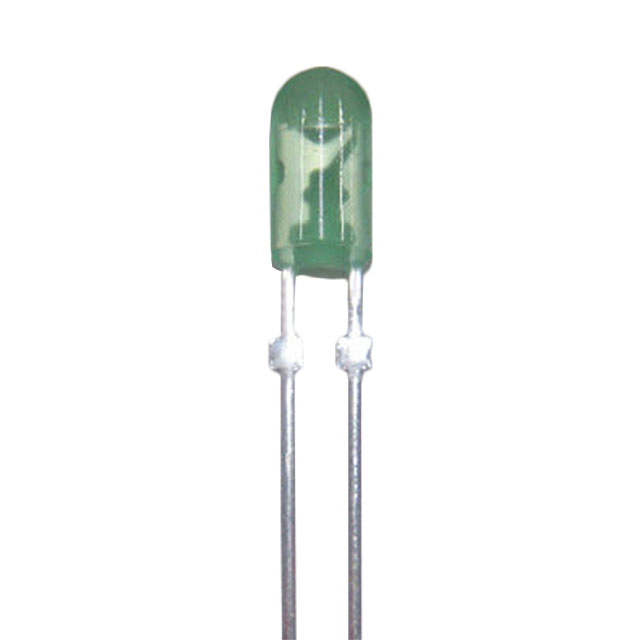

CreeLED, Inc. C566C-GFF-CX0Y0892	Green	20 mA	3.4 V	Through Hole	527 nm	Radial	5 mm	Round	5mm Round	6190 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	11.9 mm	Domed Top Oval	Standard	Green
CreeLED, Inc. C566C-AFS-CU0W0251	Amber	20 mA	2.1 V	Through Hole	590 nm	Radial	5 mm	Oval	5mm Oval	2850 mcd	35 °	70 °	Diffused	4.6 mm	5.2 mm	11.9 mm	Domed Top Oval	Standard	Amber
