041422070
ActiveRose Enclosures
BOX ALUM GRAY 8.66"L X 5.51"W
041422070
ActiveRose Enclosures
BOX ALUM GRAY 8.66"L X 5.51"W
Description
General part information
041422070

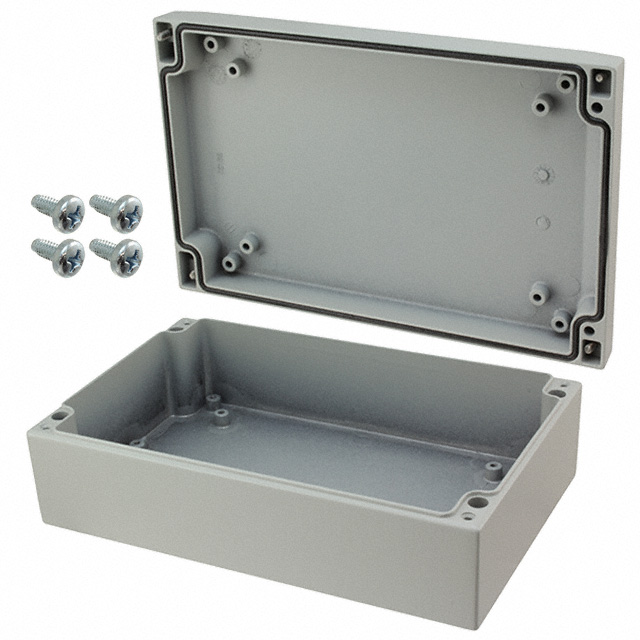

Box Metal, Aluminum Gray Cover Included 8.661" L x 5.512" W (220.00mm x 140.00mm) X 2.854" (72.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 041422070 |
|---|---|
| Area (L x W) | 47.7 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, PCB Supports |
| Height | 2.854 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 8.661 in |
| Size / Dimension Width | 5.512 in |
| Thickness | 0.157 in |
| Weight | 2.4 lbs |
