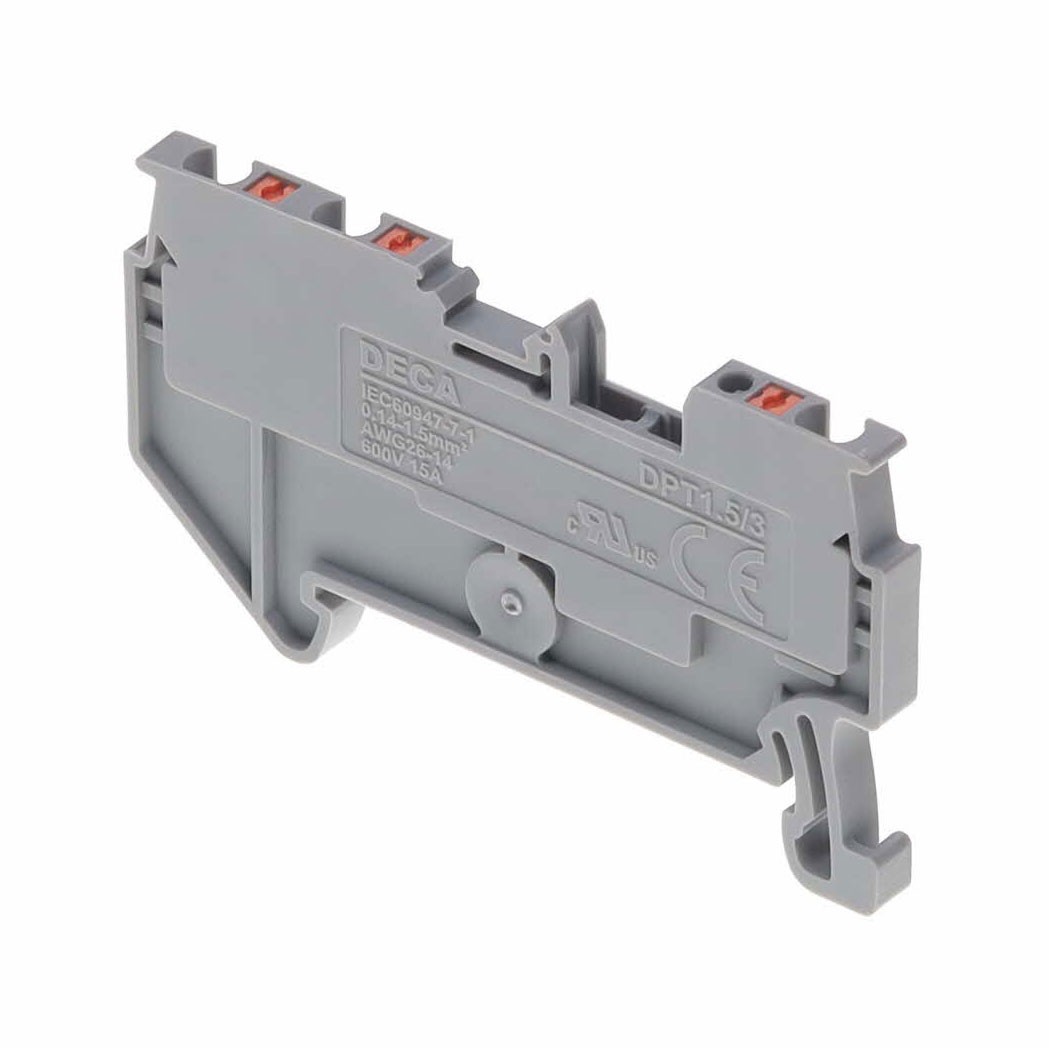

DPT1.5/3
ActiveMEAN WELL USA Inc.
1.5MM/2 CONNECTION/ PUSH IN/GND
DPT1.5/3
ActiveMEAN WELL USA Inc.
1.5MM/2 CONNECTION/ PUSH IN/GND
Description
General part information
DPT1.5/3
1.5MM/2 CONNECTION/ PUSH IN/GND
Technical Specifications
Parameters and characteristics for this part
| Specification | DPT1.5/3 |
|---|---|
| Color | Gray |
| Current - IEC | 17.5 A |
| Current - UL | 5 A |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Terminal Width | 3.5 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
