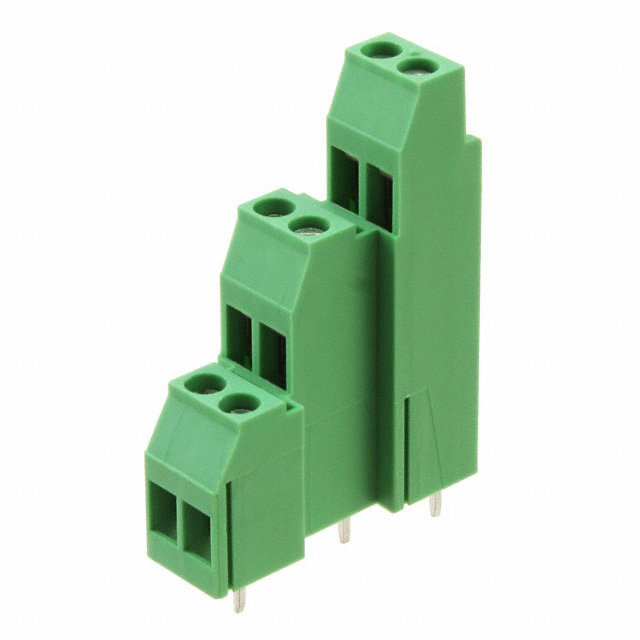

Fixed Terminal Blocks 2P 5.08mm 90DEG
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1723014 |
|---|---|
| Color | Green |
| Current | 20 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels [custom] | 3 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Thread | M3 |
| Torque - Screw [Max] | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Fixed Terminal Blocks 2P 5.08mm 90DEG
| Part | Pitch [x] | Pitch [x] | Mounting Type | Color | Wire Gauge [Max] | Wire Gauge [Min] | Screw Thread | Wire Termination | Mating Orientation | Housing Material | Current | Positions Per Level | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Features | Number of Levels [custom] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1723014 | 0.2 in | 5.08 mm | Through Hole | Green | 30 AWG | 12 AWG | M3 | Screw - Rising Cage Clamp | Horizontal with Board | Polyamide (PA), Nylon | 20 A | 2 | 0.6 Nm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | Interlocking (Side) | 3 | 300 V |
