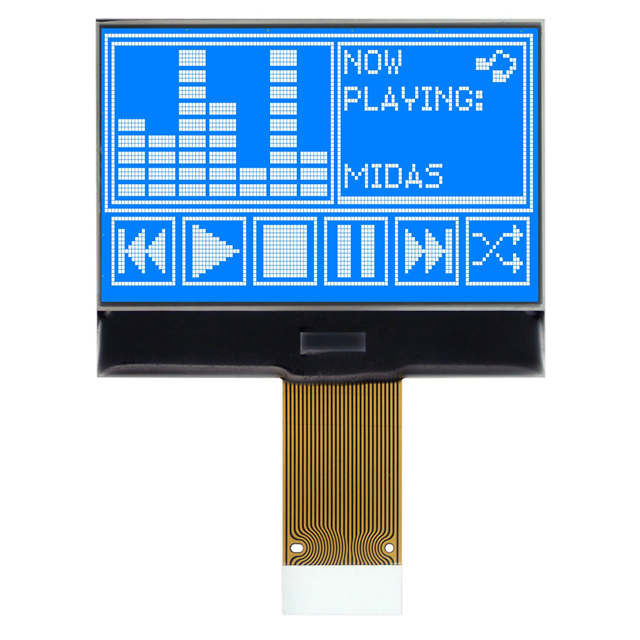

MCCOG128064B12W-BNMLW
ActiveMidas Displays
GRAPHIC LCD, 128 X 64 PIXELS, WHITE ON BLUE, 3.3V, PARALLEL, SPI, ENGLISH, JAPANESE, TRANSMISSIVE
MCCOG128064B12W-BNMLW
ActiveMidas Displays
GRAPHIC LCD, 128 X 64 PIXELS, WHITE ON BLUE, 3.3V, PARALLEL, SPI, ENGLISH, JAPANESE, TRANSMISSIVE
Description
General part information
MCCOG128064B12W-BNMLW
Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic Parallel, SPI 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | MCCOG128064B12W-BNMLW |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7565P |
| Diagonal Screen Size | 2.33 in |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Graphics Color | White |
| Interface | Parallel, SPI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 31 mm |
| Viewing Area Width | 50.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
